LED-module 8,4W white C51350N927
Source photo:
EVN
(fig. might be different or similar)

LED-module 8,4W white C51350N927

EAN/GTIN: 4037293006224
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: C51350N927
Customs tariff no.: 94054239
Similar top items: Show now & compare
40,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Lamp power=8,4 W, Voltage type=AC, Suitable for constant current=yes, Suitable for constant voltage=no, External driver required=yes, Operating current=350 mA, Operating voltage=220..240 V, Number of LEDs=1, Shape=Round, Colour=White, Colour of light according to EN 12464-1=Warm white <3300 K, Flexible=no, Colour temperature=2700 K, Luminous intensity=2804 cd, Luminous flux=960 lm, Specific luminous efficacy=114 lm/W, Beam angle=38 °, Connection type=Other, Suitable for general lighting=yes, Suitable for traffic lights=no, Suitable for variable road signs=no, Suitable for rail traffic=no, Suitable for matrix information boards=no, Height=38 mm, Diameter=50 mm, Degree of protection (IP)=IP20, Average nominal lifespan=35000 h, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

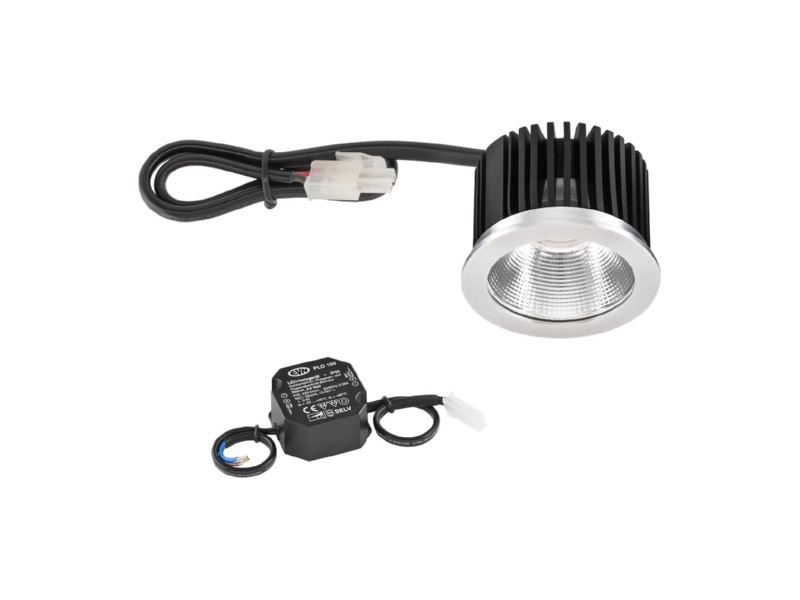

Product image EVN C51350N927 LED module 8 4W white
Product image

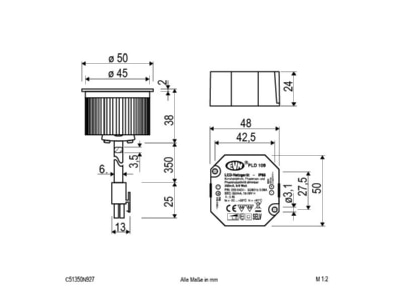

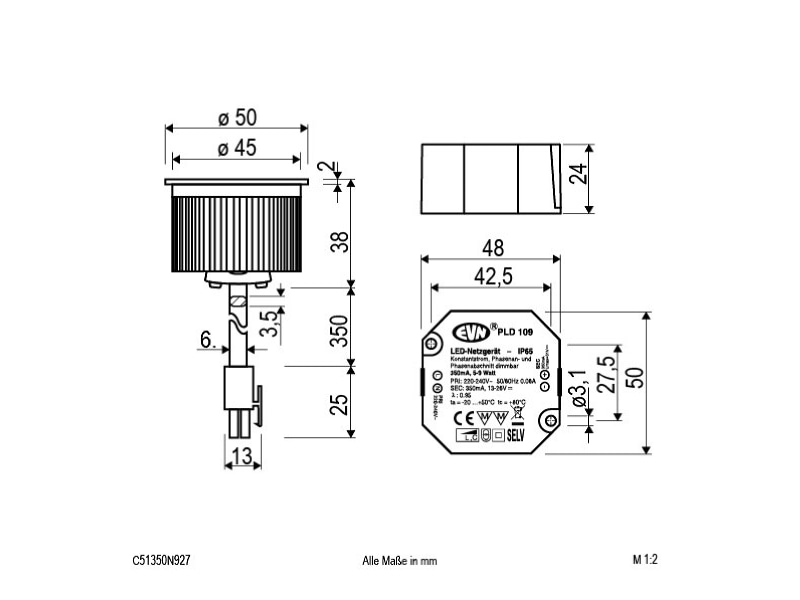

Dimensional drawing EVN C51350N927 LED module 8 4W white
Dimensional drawing

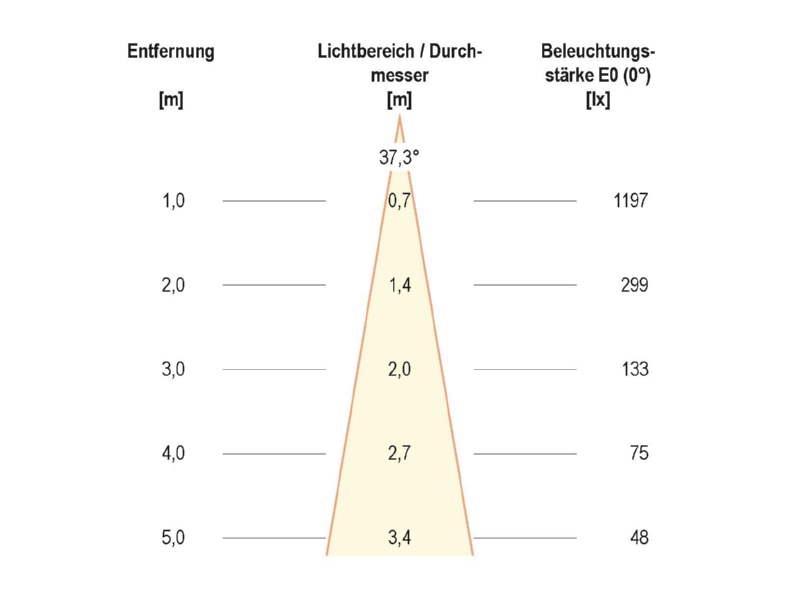

Cone diagram EVN C51350N927 LED module 8 4W white
Cone diagram
