Water detector (water sensor, leakage sensor) - special offer

WEEE: DE 68571828
Manufacturer: EIBMARKT
Manufacturer no.: RI SWM 3.2
Customs tariff no.: 90318020
Similar top items: Show now & compare
75,33 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

The water detector is suitable for foot mounting. The detector stays on 4 plastic feet, the sensors are 0,5mm higher. The detector is not suitable to be continued under water. To take therefore, the optical sensor SWM 5 is better right. If the detector detects no water, the relay contact 3-4 is closed. The green LED indicates normal condition. If there is water or no power supply, the contact 3-4 is open. The red LED will notify when water is detected.

Connecting cable 4 pole 0,14 qmm

1white : 24V AC/DC supply
2 brown: 24V AC/DC supply
3 green : N.C. contact alarm
4 yellow: N.C. contact alarm

Indication :

LED green : operation
LED red : alarm

In case of power failure the relay contact 3-4 is open.

Detector 2x 2 detector electrodes Laying on the floor at the underside 0,5mm higher than frame foot. Output relays max. 1A, max. 60V. Measuring resistance of water detector sensitivity input ~ 0,8 – 1 M Ohm Electric connecting cable LIYY 4x0,14, length 4m. Cable outer diameter 3,7 mm. Power supply 24V AC/DC, +-15%. Power current max. 20mA. Isolation supply/contact 500 V. Casting compound DIN16945, DIN53505, DIN53482. Air humidity 0 – 95 % rh. Operating temperature 0 - +60°C. Storage temperature -30 - +80°C. Construction, cable entry PCB mount. Weight 130 g. Dimensions 46x34x28mm (WxLxH)

More product images:

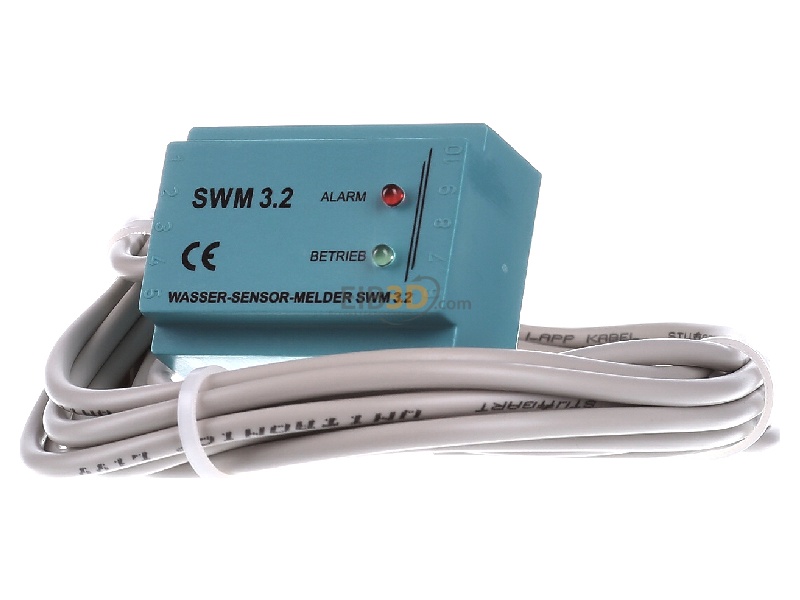

Front view EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
Front view

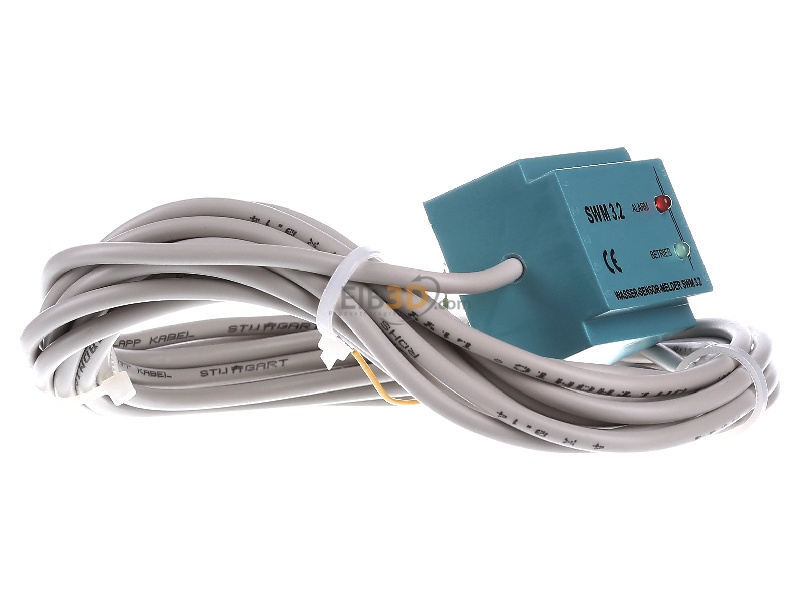

View on the left EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
View on the left

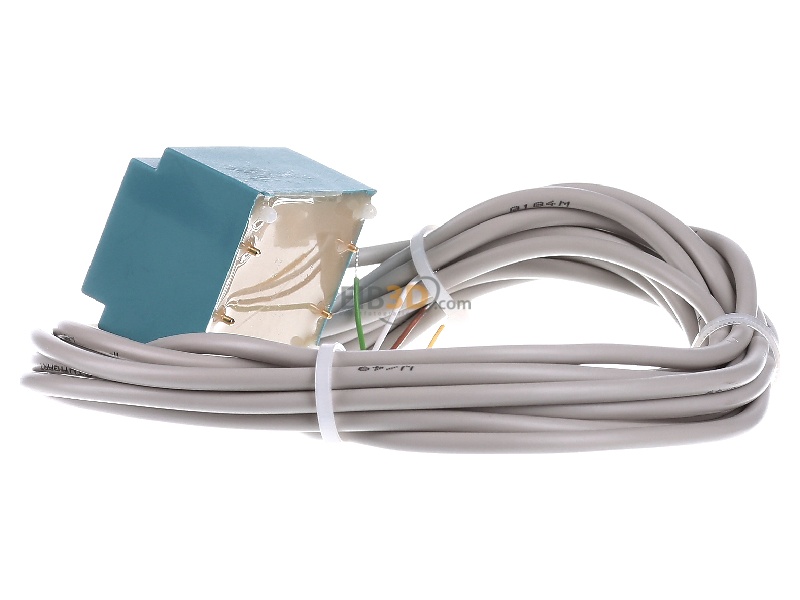

View on the right EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
View on the right

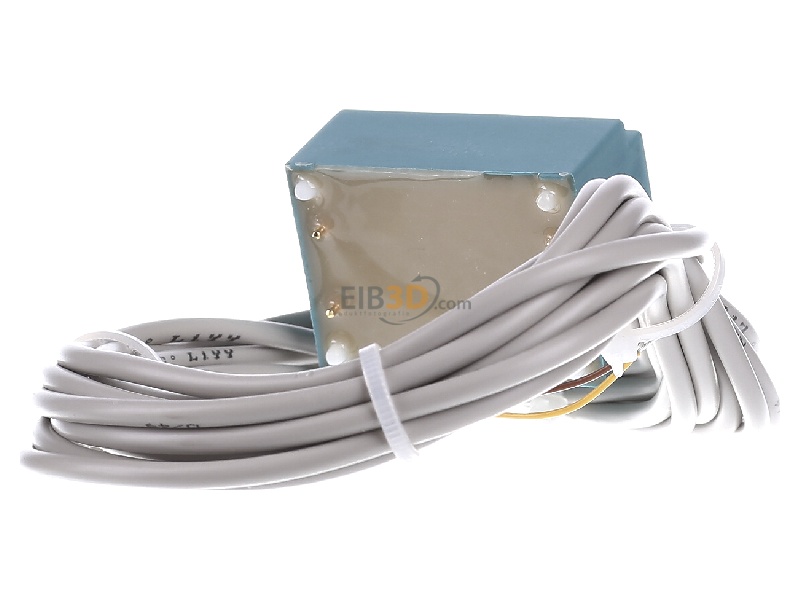

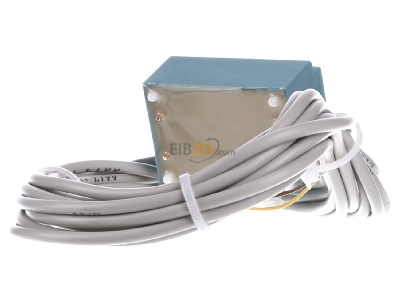

Back view EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
Back view

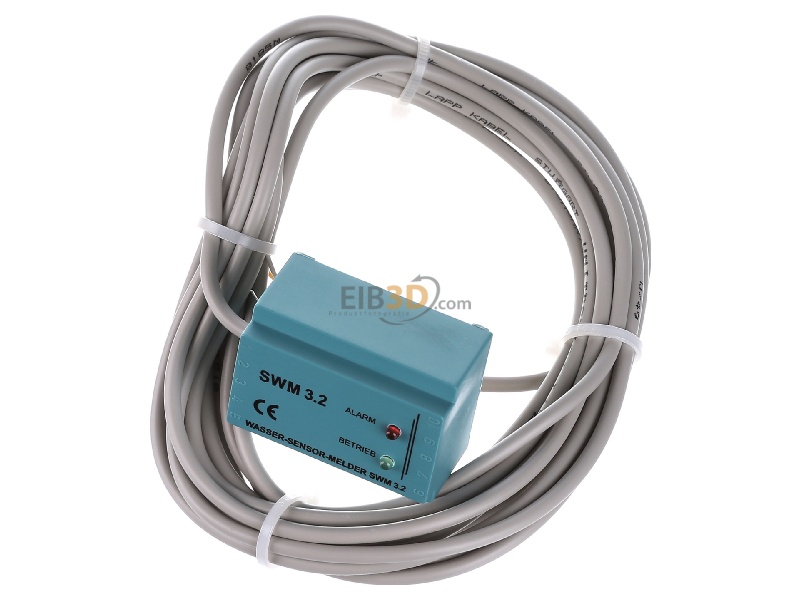

View up front EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
View up front

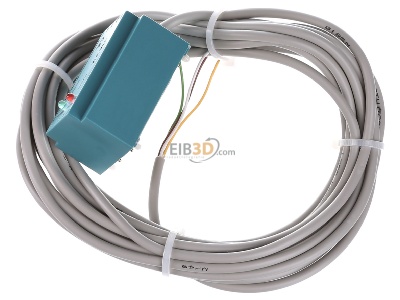

View top left EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
View top left

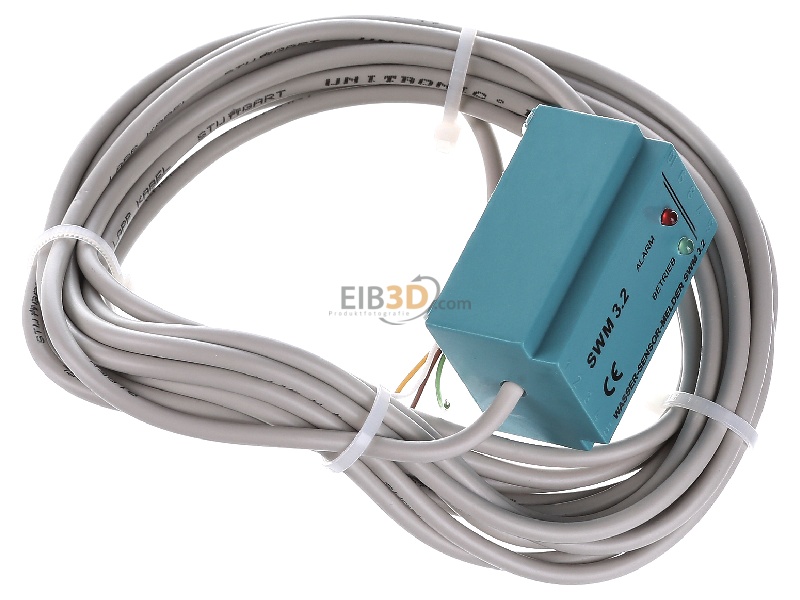

View top right EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
View top right

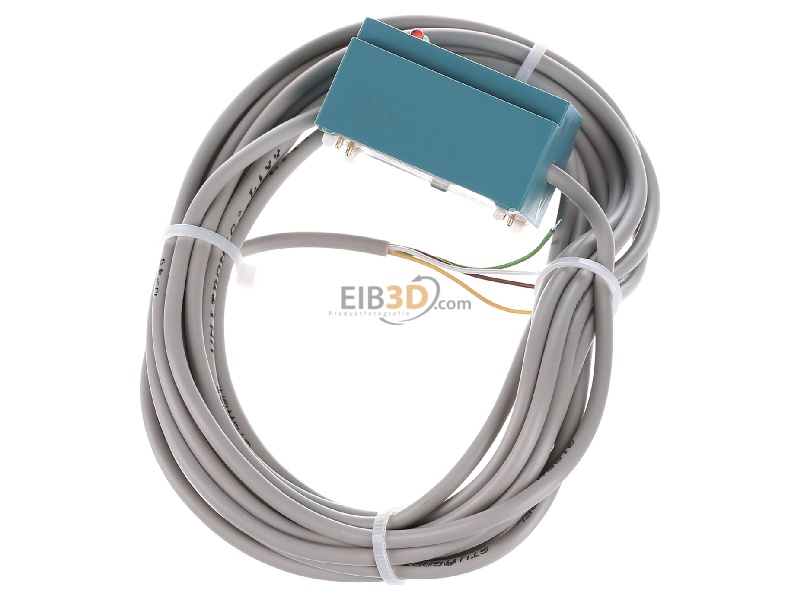

Top rear view EIBMARKT Water detector, water sensor, leakage sensor conventional or for connection KNX, RI SWM 3.2
Top rear view
