Magnetic contact MK4W VdS 2,5m without casings

Manufacturer: EIBMARKT
Manufacturer no.: eib0000119
Customs tariff no.: 85365080
Similar top items: Show now & compare
14,51 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Magnetic contact MK4W VdS

Magnetic contact and magnet to be installed in window and door frames to monitor opening. Magnetic contact and magnet are installed facing each other or in parallel in the window frame/door panel and window base/door base. Series connection of magnetic contacts in the reporting line possible. Type of contact: 1-pole closing contact, switching voltage: max. DC 100 V Capacity: max. 10 W Operating voltage: max. 40 V Connecting cable white: 2,5 m LIYY 4 x 0,14 qmm, VdS-No.: G 191 556 Color: white, Delivery volume: magnetic contact, magnet, Option: 2 pcs. casings, white (AGW) Info: In order to analyze the contact information in the EIB the magnetic contact has to ´´be prepared´´ for bus use first. This can be done in different ways. For example, if you want to connect the contact locally to the EIB, that means you do not want to put the line directly to a central evaluation center (such as electrical distribution) the best way is a connection using a push button interface (2-fold, 4-fold, 8-fold). For central registration the binary inputs REG (series buit-in device for electrical distribution) are suited best. In general, these are 24 V-AC/DC binary inputs, that means a voltage (24V) is sent to the contact which is then analysed at the binary input (edge analysis). For example: leading edge (window closed) there are 24 V at the binary input ---> ´´OFF´´ bus telegram and decreasing edge (window open) there aren´t 24 V at the binary input ---> ´´ON´´ bus telegram. You can use this information to regulate the heating when the window is open to ensure frost protection or alert and display messages. In general, these contacts are registered room by room that means one binary input contact per room.

More product images:

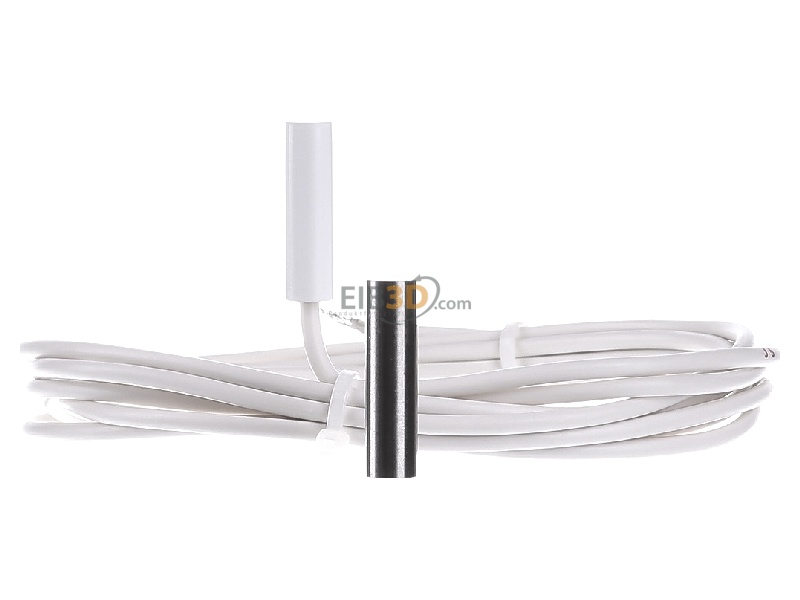

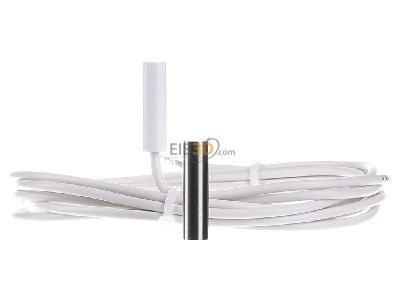

Front view EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
Front view

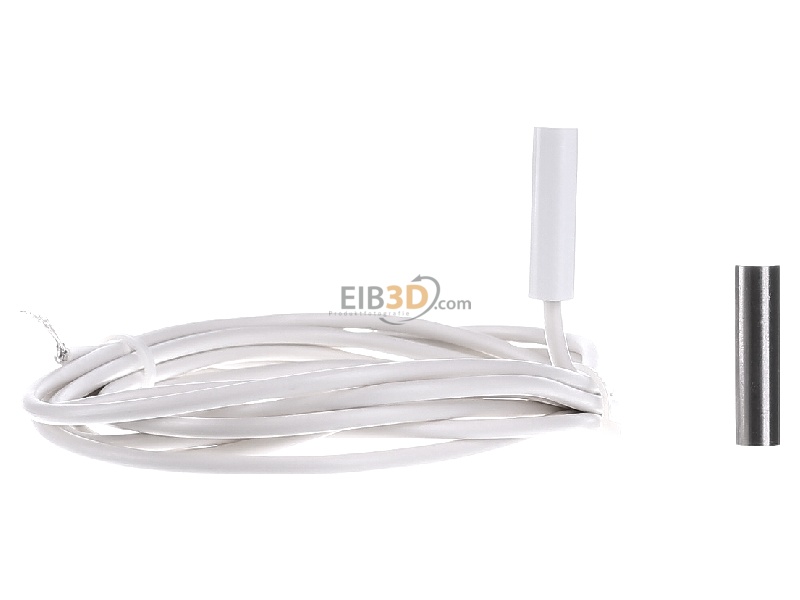

View on the left EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
View on the left

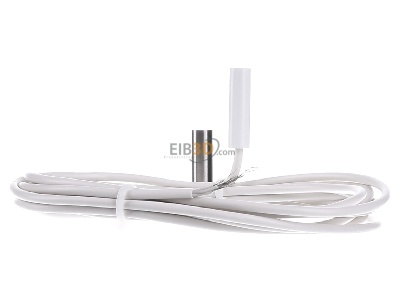

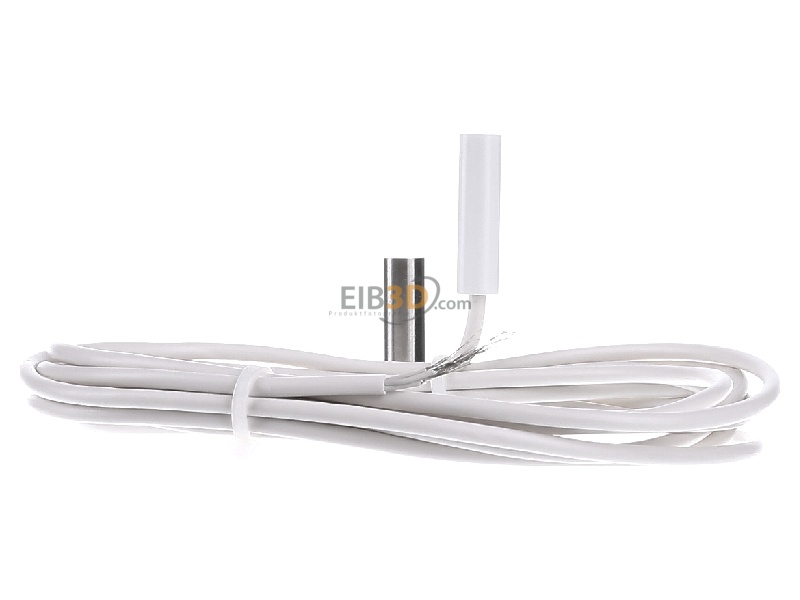

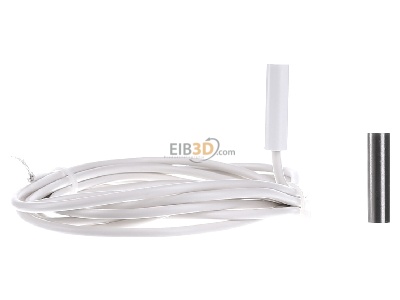

View on the right EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
View on the right

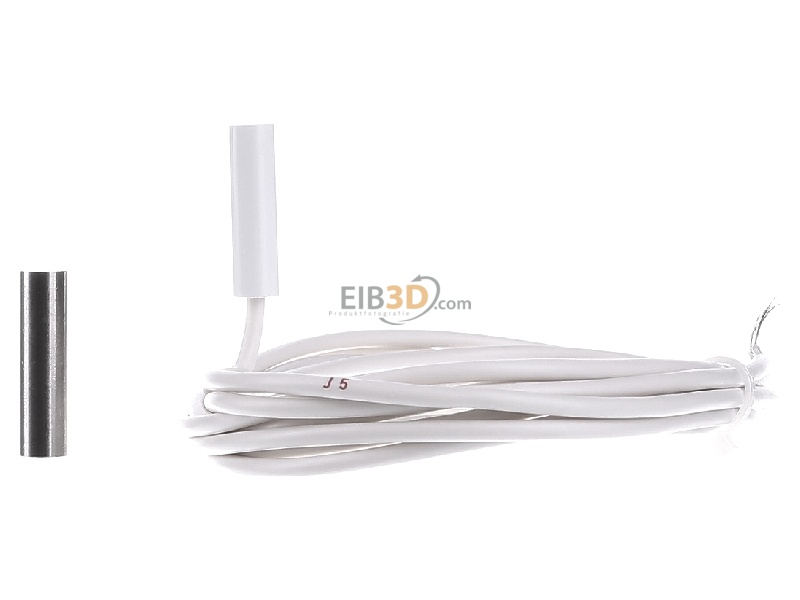

Back view EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
Back view

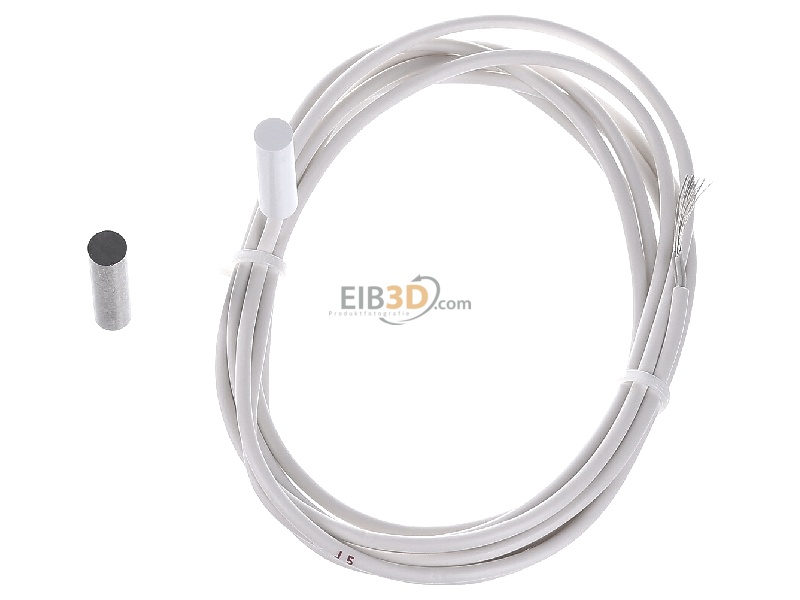

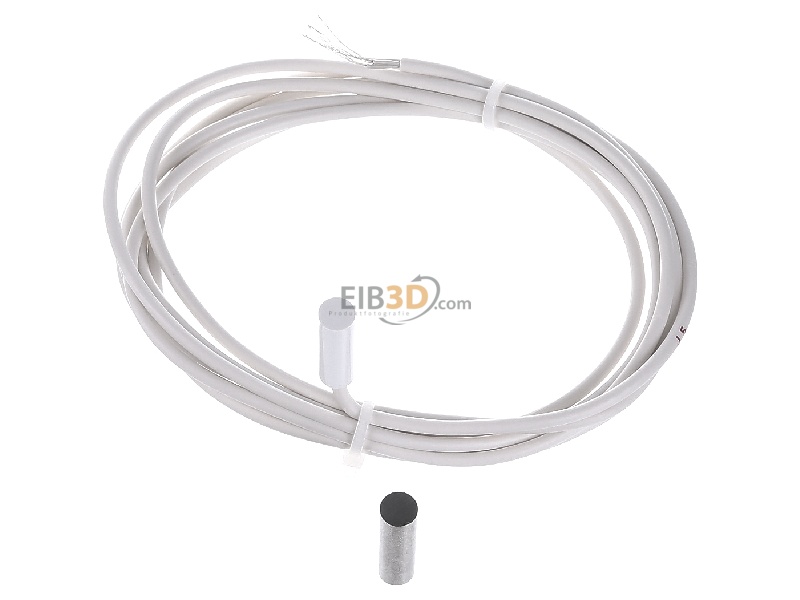

View up front EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
View up front

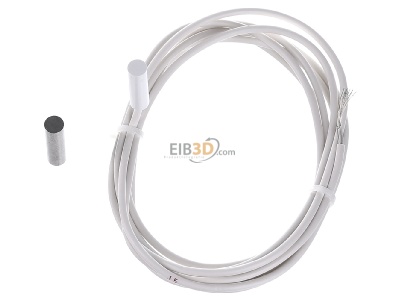

View top left EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
View top left

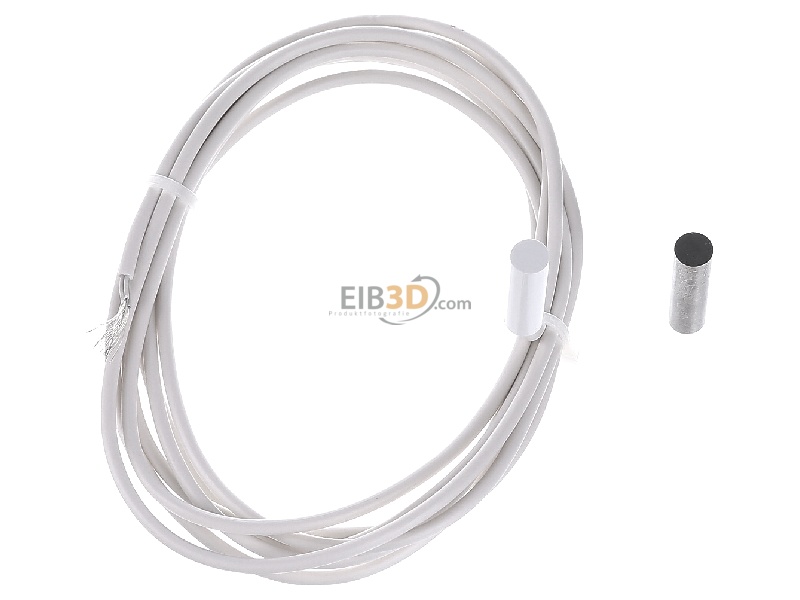

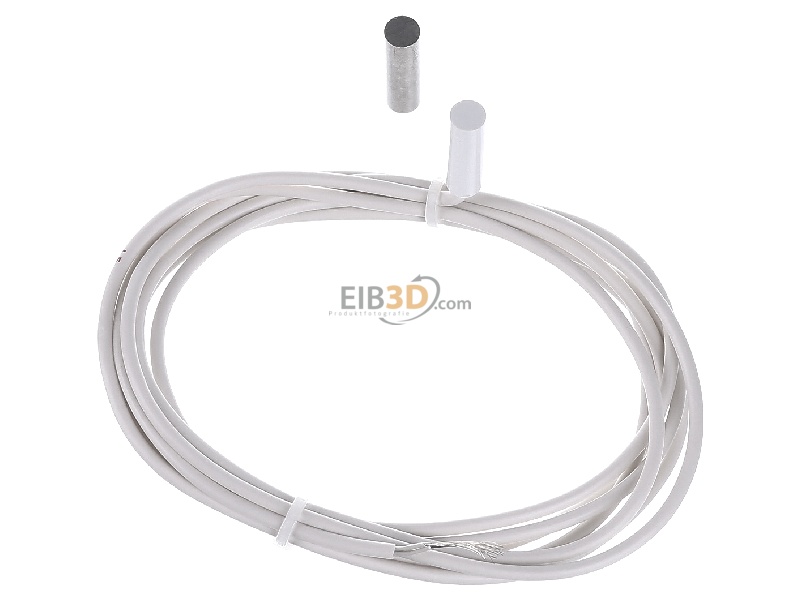

View top right EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
View top right

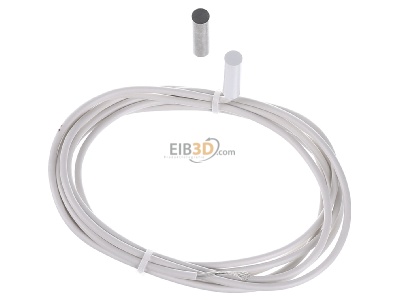

Top rear view EIBMARKT eib0000119 Magnetic contact MK4W VdS 2,5m without casings
Top rear view
