Residual current breaker 4-p DFS4 025-4/0,03-F
Source photo:
Doepke
(fig. might be different or similar)

Residual current breaker 4-p DFS4 025-4/0,03-F

EAN/GTIN: 4014712212244
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS4 025-4/0,03-F
Manufact.-SKU: 09124820
Customs tariff no.: 85363030
Similar top items: Show now & compare
215,20 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Number of poles=4, Rated voltage=400 V, Rated current=25 A, Rated fault current=0,03 A, Rated insulation voltage Ui=400 V, Rated impulse withstand voltage Uimp=4 kV, Mounting method=DIN rail, Leakage current type=F, Selective protection=no, Short-time delayed tripping=yes, Short-circuit breaking capacity (Icw)=10 kA, Surge current capacity=3 kA, Voltage type=AC, With interlocking device=no, Frequency=50 Hz, Additional equipment possible=yes, Degree of protection (IP)=IP20, Width in number of modular spacings=4, Built-in depth=69 mm, Ambient temperature during operating=-25..40 °C, Pollution degree=2, Connectable conductor cross section multi-wired=1,5..50 mm˛, Connectable conductor cross section solid-core=1,5..50 mm˛, Explosion-proof=no

More product images:

Product image Doepke DFS4 025 4 0 03 F Residual current breaker 4 p
Product image

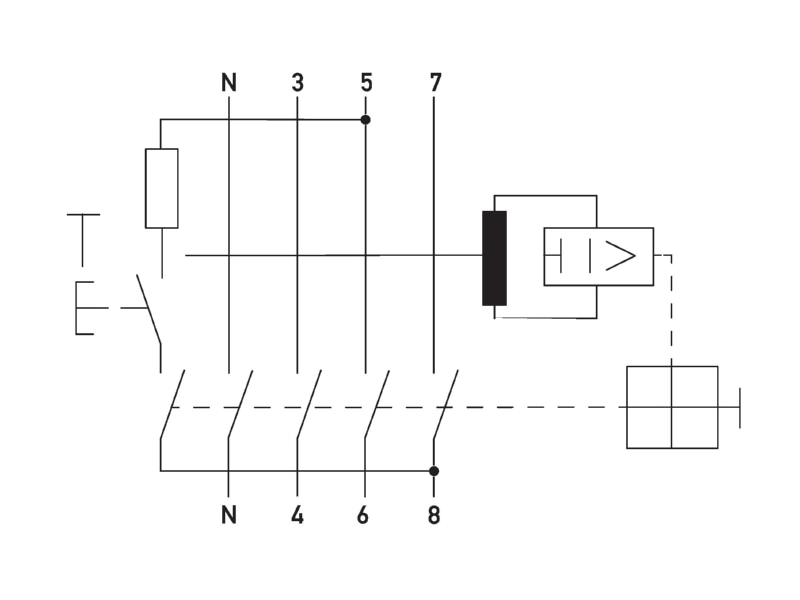

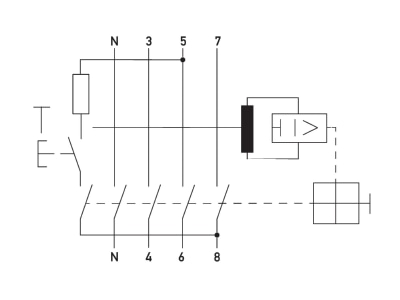

Circuit diagram Doepke DFS4 025 4 0 03 F Residual current breaker 4 p
Circuit diagram

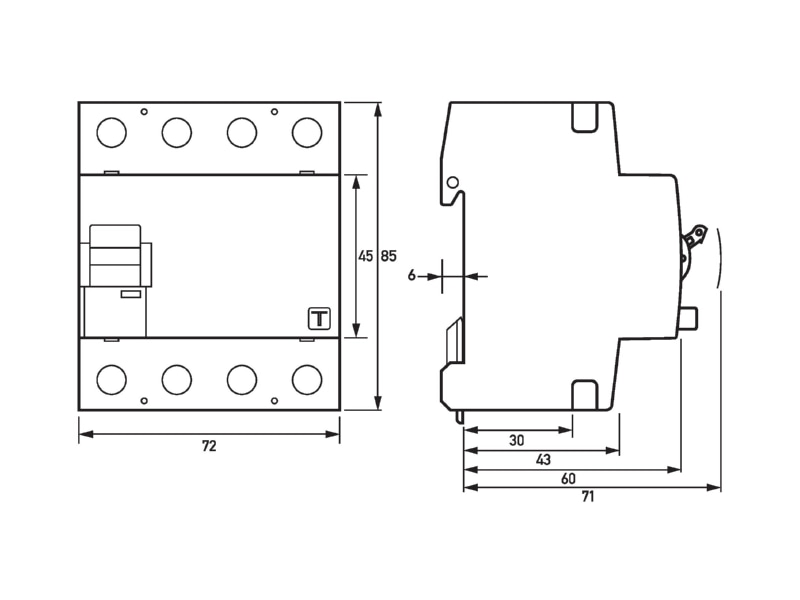

Dimensional drawing Doepke DFS4 025 4 0 03 F Residual current breaker 4 p
Dimensional drawing
