Miniature circuit breaker 1-p C6A DLS 6I C6-1 10 kA
Source photo:
Doepke
(fig. might be different or similar)

Miniature circuit breaker 1-p C6A DLS 6I C6-1 10 kA

EAN/GTIN: 4014712170964
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DLS 6I C6-1 10 kA
Manufact.-SKU: 09916199
Customs tariff no.: 85362010
Similar top items: Show now & compare
8,41 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p C6A Release characteristic C, Number of poles (total) 1, Number of protected poles 1, Rated current 6A, Rated voltage 230V, Rated insulation voltage Ui 2V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0kA, Voltage type AC/DC, Frequency 16,67 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 68,7mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section multi-wired 1,5 ... 25mm², Connectable conductor cross section solid-core 0,5 ... 25mm²

More product images:

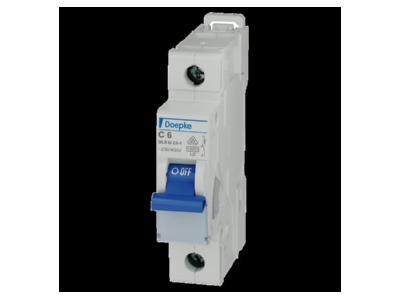

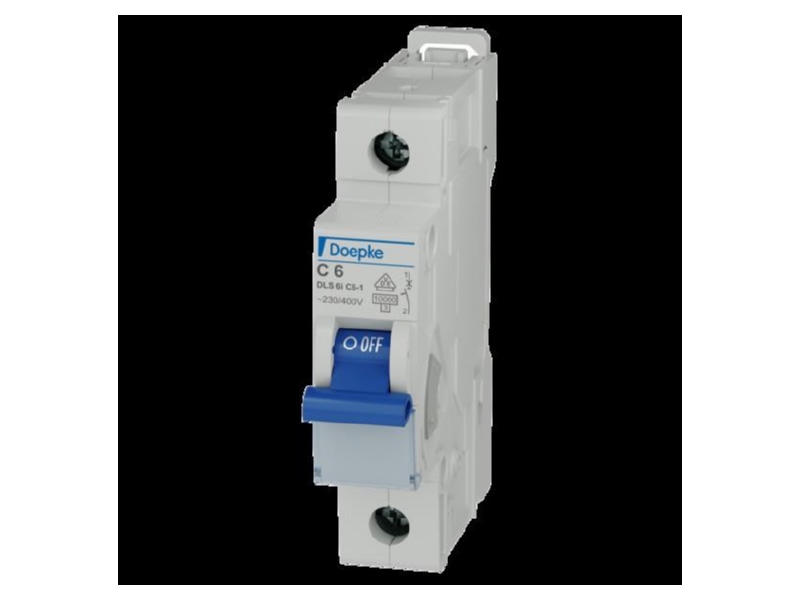

Product image Doepke DLS 6I C6 1 10 kA Miniature circuit breaker 1 p C6A
Product image

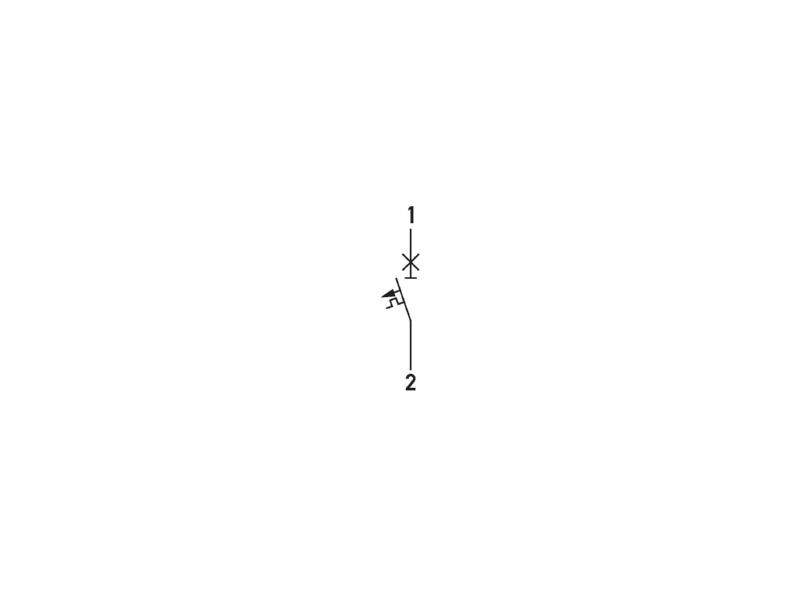

Circuit diagram Doepke DLS 6I C6 1 10 kA Miniature circuit breaker 1 p C6A
Circuit diagram

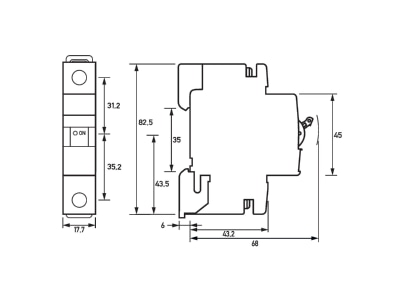

Dimensional drawing Doepke DLS 6I C6 1 10 kA Miniature circuit breaker 1 p C6A
Dimensional drawing
