Installation contactor 24VAC 1 NO/ 1 NC HS 1-024AC/20-11

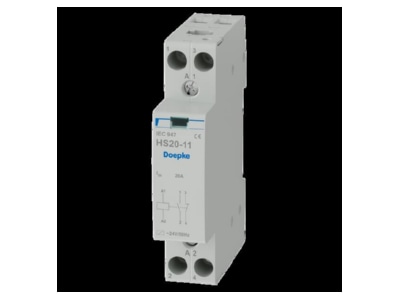

Source photo:
Doepke
(fig. might be different or similar)

Installation contactor 24VAC 1 NO/ 1 NC HS 1-024AC/20-11

EAN/GTIN: 4014712067059
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: HS 1-024AC/20-11
Manufact.-SKU: 09980403
Customs tariff no.: 85364900
Similar top items: Show now & compare
44,21 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Rated operating voltage=400 V, Rated operation current=20 A, Utility category=1, Rated excitation voltage=24 V, Voltage type (operating voltage)=AC, Voltage type (excitation voltage)=AC, Number of contacts as normally open contact=1, Number of contacts as normally closed contact=1, Max. incandescent lamp load=2160 W, Max. load fluorescent lamp=935 VA, Max. load fluorescent lamp (Duo circuit)=2320 VA, Max. load fluorescent lamp (parallel compensated)=1020 VA, Slider for hand switch=no, Width in number of modular spacings=1, Built-in depth=60 mm, Additional equipment possible=no, With day/night function=no, Hum-free=no, Degree of protection (IP)=IP20

More product images:

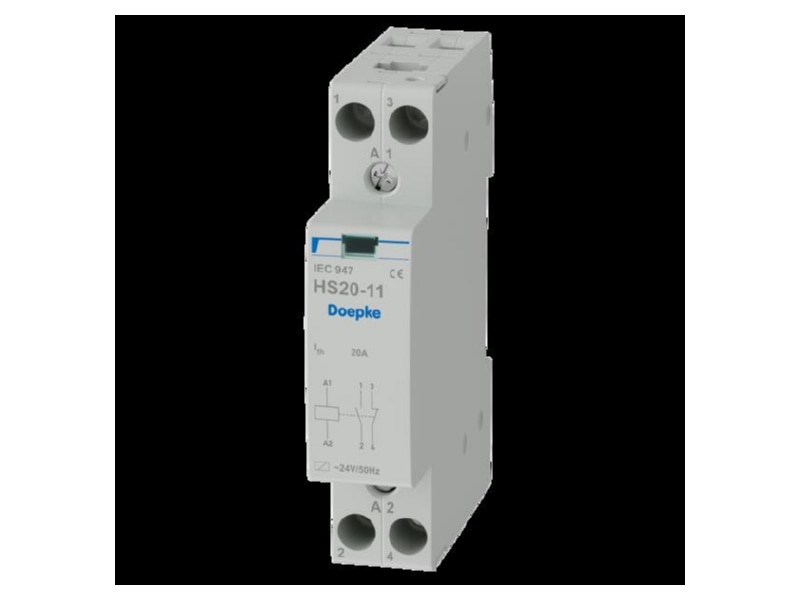

Product image Doepke HS 1 024AC 20 11 Installation contactor 24VAC 1 NO  1 NC
Product image

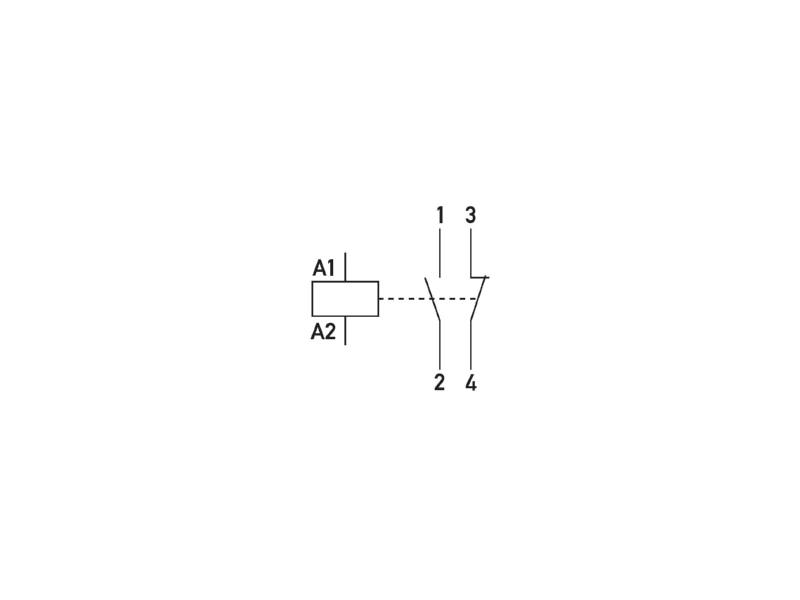

Circuit diagram Doepke HS 1 024AC 20 11 Installation contactor 24VAC 1 NO  1 NC
Circuit diagram

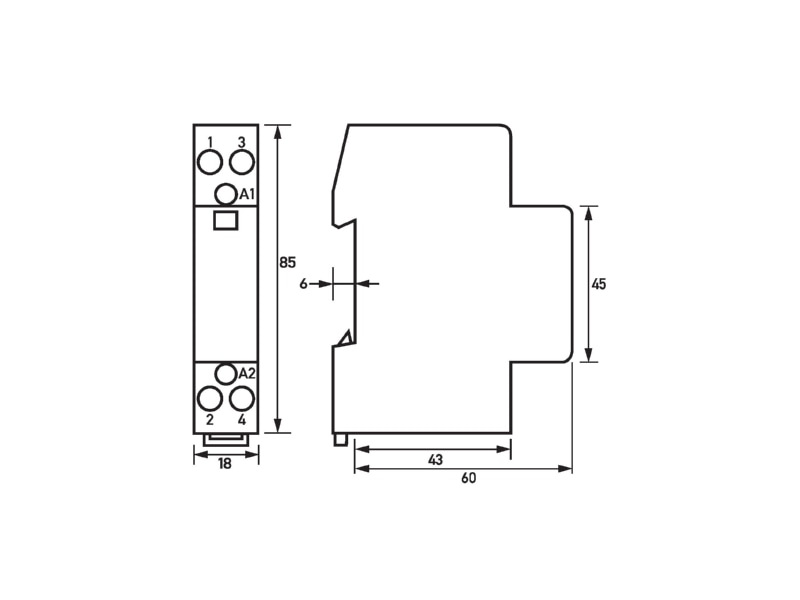

Dimensional drawing Doepke HS 1 024AC 20 11 Installation contactor 24VAC 1 NO  1 NC
Dimensional drawing
