Wire for lightning protection 5mm HVI LI PL RAV819638
Source photo:
Dehn
(fig. might be different or similar)

Wire for lightning protection 5mm HVI LI PL RAV819638

EAN/GTIN: 4013364499935
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: HVI LI PL RAV#819638
Manufact.-SKU: 819638
Customs tariff no.: 85446010
Similar top items: Show now & compare
392,35 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

HVI light plus cable 6 to 70m HVI LI PL RAV#819638 Conductor diameter 5mm, conductor cross-section 16mm², outer diameter including casing/coating 21mm, conductor class class 2 = stranded, number of individual wires 1, conductor material copper, surface protection galvanic/electrolytic Galvanized, sheathing material polyethylene, cross-linked (PU), color gray, insulation material polyethylene (PE), Max. equivalent separation distance s (in air) 0.6m, Max. equivalent separation distance s (solid building materials) 1.2m, high-voltage-resistant insulated version , Suitable for Ex areas, HVI light plus cable (high-voltage-resistant insulated conductor), to maintain the separation distance to electrically conductive parts in accordance with DIN EN 62305-3 (VDE 0185-305-3), to prevent dangerous flashovers between parts of the external lightning protection and internal ones , conductive parts (electrical system, pipes, etc.). In order to avoid sliding discharges, the HVI light plus cable is equipped with a special outer jacket that makes it possible to control high lightning pulse voltages against a reference potential. HVI light plus cable version (pre-assembled for external pipe laying, gray), with a head piece and an earth connection element. Equivalent separation distance s = 60 cm (in air), s = 120 cm (solid building material).

More product images:

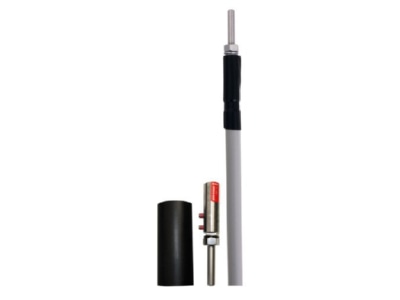

Product image 1 DEHN HVI LI PL RAV 819638 Wire for lightning protection 5mm HVI LI PL RAV819638
Product image 1
Product image 2 DEHN HVI LI PL RAV 819638 Wire for lightning protection 5mm HVI LI PL RAV819638
Product image 2
Product image 3 DEHN HVI LI PL RAV 819638 Wire for lightning protection 5mm HVI LI PL RAV819638
Product image 3

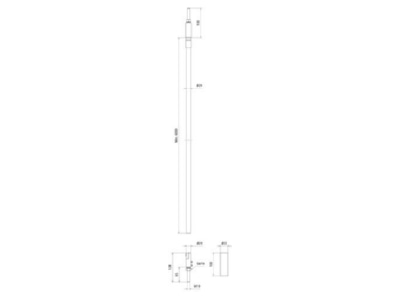

Dimensional drawing DEHN HVI LI PL RAV 819638 Wire for lightning protection 5mm HVI LI PL RAV819638
Dimensional drawing
