Wire for lightning protection 4,6mm HVI LI PL6021819605
Source photo:
Dehn
(fig. might be different or similar)

Wire for lightning protection 4,6mm HVI LI PL6021819605

EAN/GTIN: 4013364499652
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: HVI LI PL6021#819605
Manufact.-SKU: 819605
Customs tariff no.: 85446010
Order level:
(minimum)
500 meter
Similar top items: Show now & compare
17.435,00 EUR Price incl. tax. 19,00%
(for 500 meter)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 500 meter orderable.
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

HVI light plus cable L500m HVI LI PL6021#819605 Conductor diameter 4.6mm, conductor cross section 16mm², outer diameter including casing/coating 21mm, conductor class class 1 = solid, number of individual wires 1, conductor material copper, surface protection untreated, sheathing material polyethylene , cross-linked (PU), color grey, insulation material polyethylene (PE), max. equivalent separation distance s (in air) 0.6m, max. equivalent separation distance s (solid building materials) 1.2m, high-voltage-resistant insulated design, max. tensile load 800N, suitable for hazardous areas, weight 47kg/100 m, HVI light plus cable (high-voltage-proof insulated conductor), to maintain the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3), to avoid dangerous flashovers between parts of the external lightning protection and internal, conductive parts (electrical system, pipes, etc.). In order to avoid sliding discharges, the HVI light plus cable is equipped with a special outer jacket that makes it possible to control high lightning pulse voltages against a reference potential. Version for assembly on site (length 500 m - gray). Equivalent separation distance s = 60 cm (in air), s = 120 cm (solid building material).

More product images:

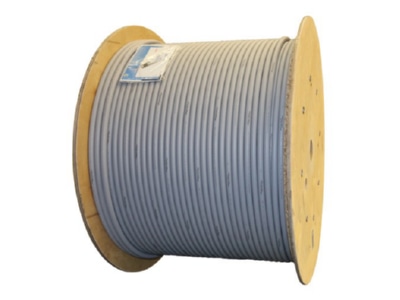

Product image 1 DEHN HVI LI PL6021 819605 Wire for lightning protection 4 6mm HVI LI PL6021819605
Product image 1

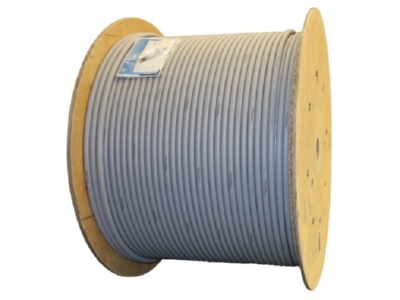

Product image 2 DEHN HVI LI PL6021 819605 Wire for lightning protection 4 6mm HVI LI PL6021819605
Product image 2

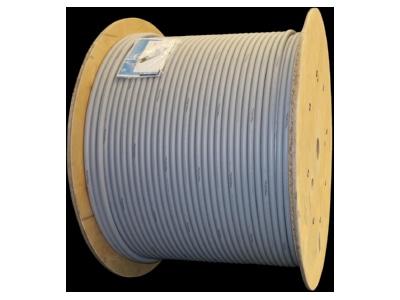

Product image 3 DEHN HVI LI PL6021 819605 Wire for lightning protection 4 6mm HVI LI PL6021819605
Product image 3
