Wire for lightning protection 4,6mm HVI LI PL RIV819636
Source photo:
Dehn
(fig. might be different or similar)

Wire for lightning protection 4,6mm HVI LI PL RIV819636

EAN/GTIN: 4013364485815
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: HVI LI PL RIV#819636
Manufact.-SKU: 819636
Customs tariff no.: 85446010
Similar top items: Show now & compare
402,26 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

HVI light plus cable 6 to 70m HVI LI PL RIV#819636 Conductor diameter 4.6mm, conductor cross section 16mm², outer diameter including casing/coating 21mm, conductor class Kl.1 = solid, number of individual wires 1, conductor material copper, surface protection untreated , Sheathing material polyethylene, cross-linked (PU), color gray, insulation material polyethylene (PE), Max. equivalent separation distance s (in air) 0.6m, Max. equivalent separation distance s (solid building materials) 1.2m, high-voltage-resistant insulated version, Max. tensile load 800N, suitable for hazardous areas, weight 45kg/100 m, HVI light plus cable (high-voltage-resistant insulated conductor), for maintaining the separation distance to electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3), to prevent dangerous flashovers between parts of the external lightning protection and internal, conductive parts (electrical system, pipes, etc.). In order to avoid sliding discharges, the HVI light plus cable is equipped with a special outer jacket that makes it possible to control high lightning pulse voltages against a reference potential. HVI light plus cable version (pre-assembled for internal pipe laying, gray), with a head piece and an earth connection element. Equivalent separation distance s = 60 cm (in air), s = 120 cm (solid building material).

More product images:

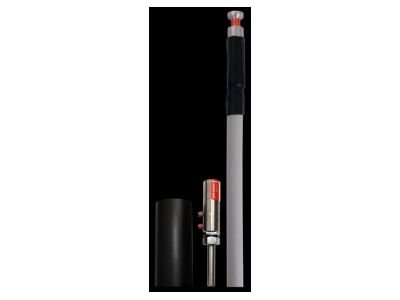

Product image 1 DEHN HVI LI PL RIV 819636 Wire for lightning protection 4 6mm HVI LI PL RIV819636
Product image 1

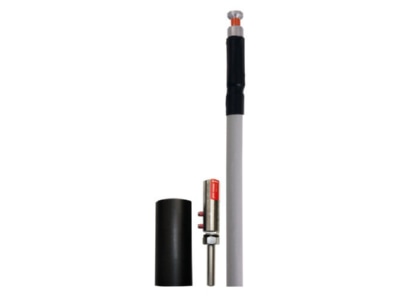

Product image 2 DEHN HVI LI PL RIV 819636 Wire for lightning protection 4 6mm HVI LI PL RIV819636
Product image 2
Product image 3 DEHN HVI LI PL RIV 819636 Wire for lightning protection 4 6mm HVI LI PL RIV819636
Product image 3

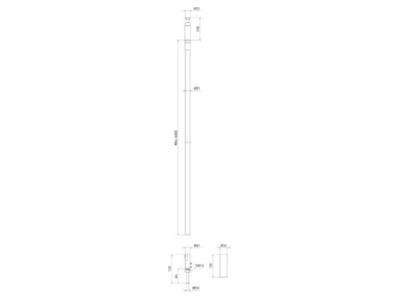

Dimensional drawing 1 DEHN HVI LI PL RIV 819636 Wire for lightning protection 4 6mm HVI LI PL RIV819636
Dimensional drawing 1
Dimensional drawing 2 DEHN HVI LI PL RIV 819636 Wire for lightning protection 4 6mm HVI LI PL RIV819636
Dimensional drawing 2
