Support pipe for lightning protection SR D40 2400 105678
Source photo:
Dehn
(fig. might be different or similar)

Support pipe for lightning protection SR D40 2400 105678

EAN/GTIN: 4013364500051
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: SR D40 2400 #105678
Manufact.-SKU: 105678
Customs tariff no.: 85389099
Similar top items: Show now & compare
278,19 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Support tube for HVI lightplus L1000mm SR D40 2400 #105678 Type of accessory/spare part Support tube, material aluminum/plastic, surface protection untreated, support tube GRP/Al with side outlet for tripods, internal end closure and PA spring element for the HVI light plus cable, for separate (isolated) construction of air-termination devices with an air-termination tip. To maintain the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3). Tube D40 mm made of glass fiber reinforced plastic (GRP), UV-stabilized, color light gray, material factor km = 0.7. One-piece design, combined with safety tip (D10 mm, length 1000 mm) made of STAINLESS STEEL.

More product images:

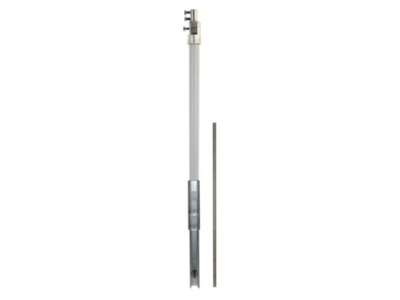

Product image 1 DEHN SR D40 2400  105678 Support pipe for lightning protection SR D40 2400 105678
Product image 1
Product image 2 DEHN SR D40 2400  105678 Support pipe for lightning protection SR D40 2400 105678
Product image 2
Product image 3 DEHN SR D40 2400  105678 Support pipe for lightning protection SR D40 2400 105678
Product image 3

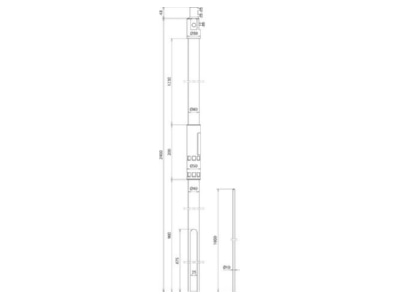

Dimensional drawing 1 DEHN SR D40 2400  105678 Support pipe for lightning protection SR D40 2400 105678
Dimensional drawing 1
Dimensional drawing 2 DEHN SR D40 2400  105678 Support pipe for lightning protection SR D40 2400 105678
Dimensional drawing 2
