Combined arrester for signal systems BXT ML2 BD 180

EAN/GTIN: 4013364116078
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: BXT ML2 BD 180
Manufact.-SKU: 920247
Customs tariff no.: 85363010
Similar top items: Show now & compare
96,89 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Combined arrester for signal systems Nominal voltage DC 180 ... 180V, Max. continuous voltage AC 127V, Max. continuous voltage DC 180V, Lightning impulse current (10/350 µs) 5kA, Nominal discharge surge current (8/20) 20kA, Nominal load current 0,75A, Voltage protection level core/core 250V, Voltage protection level core/earth 550V, Limiting frequency 25MHz, Mounting method On basic element, Connection 1 Other, Pro-active thermo-control, Explosion-tested version

More product images:

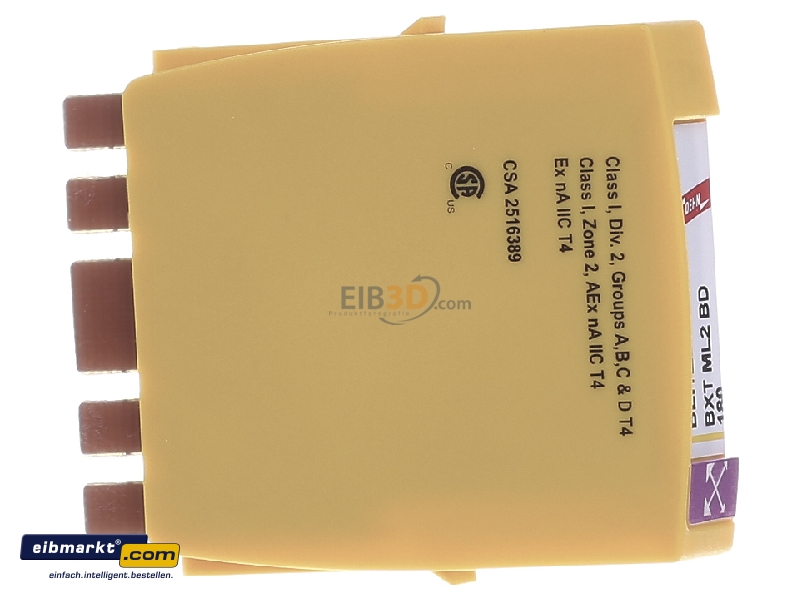

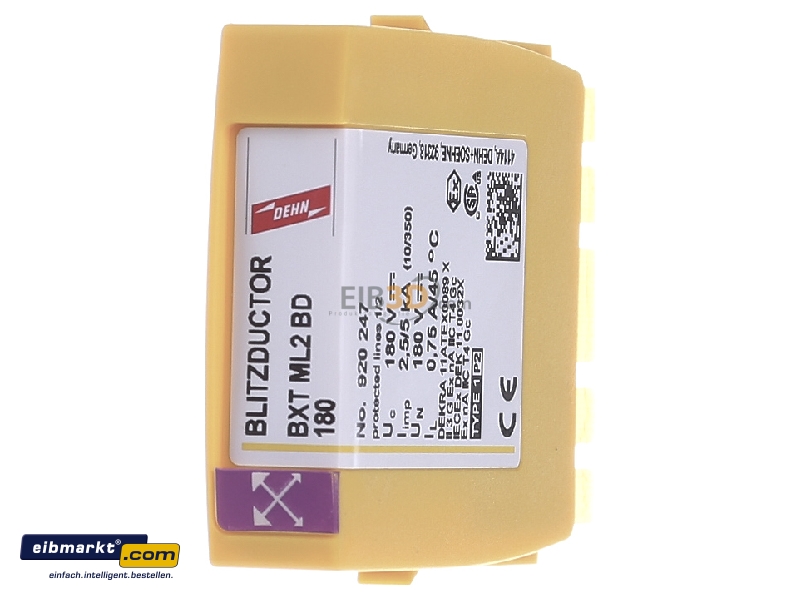

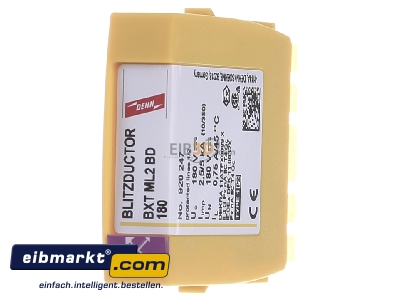

Front view Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
Front view

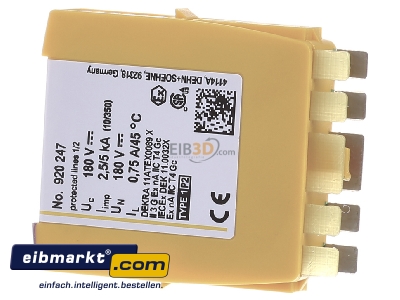

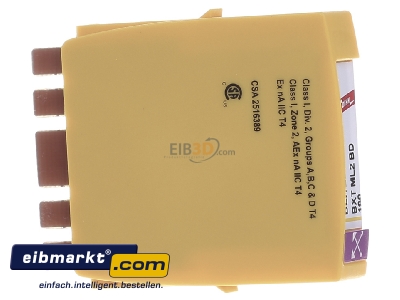

View on the left Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
View on the left

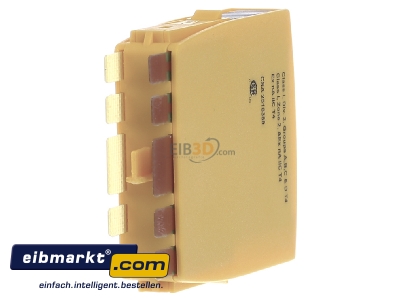

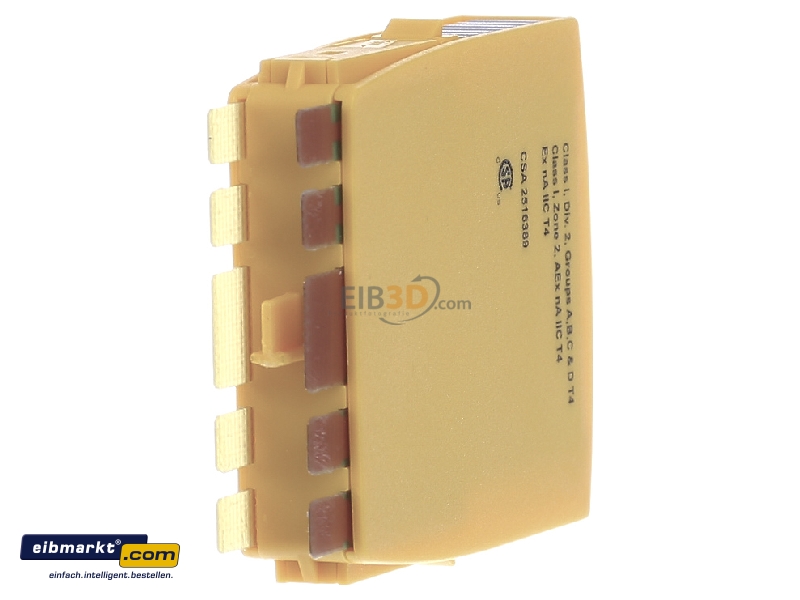

View on the right Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
View on the right
Back view Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
Back view

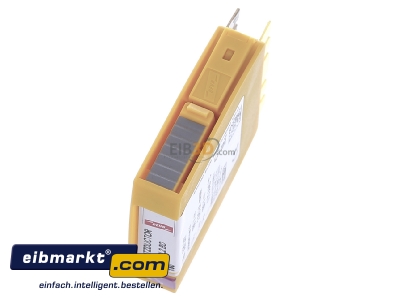

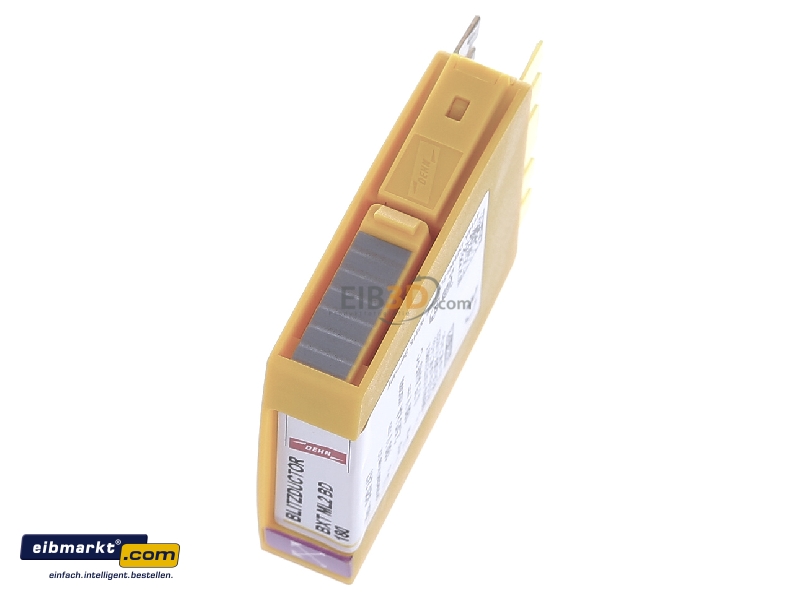

View up front Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
View up front

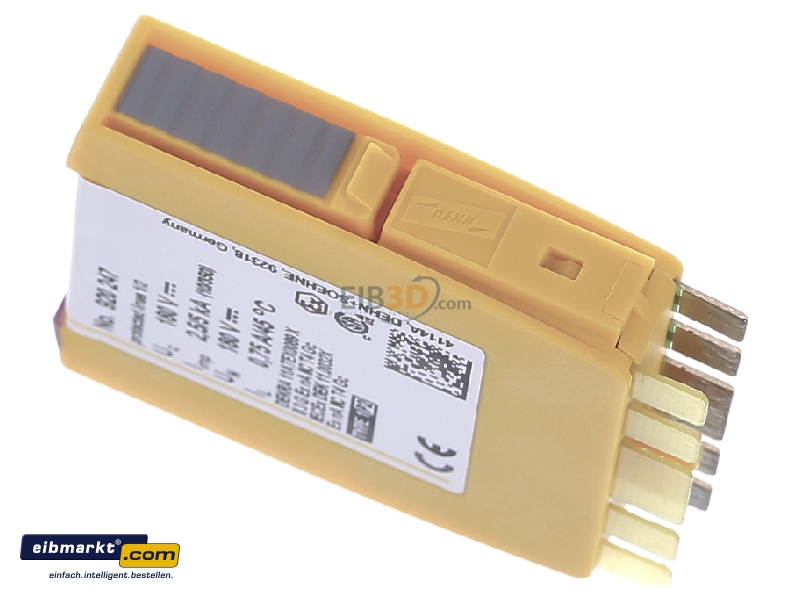

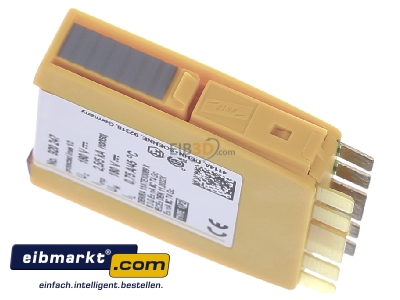

View top left Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
View top left

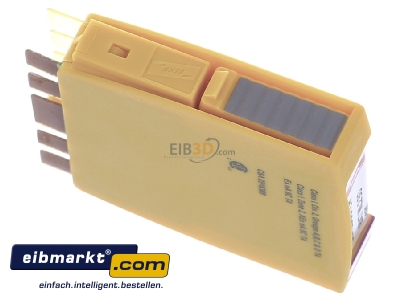

View top right Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
View top right

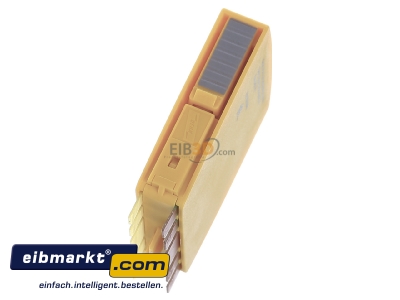

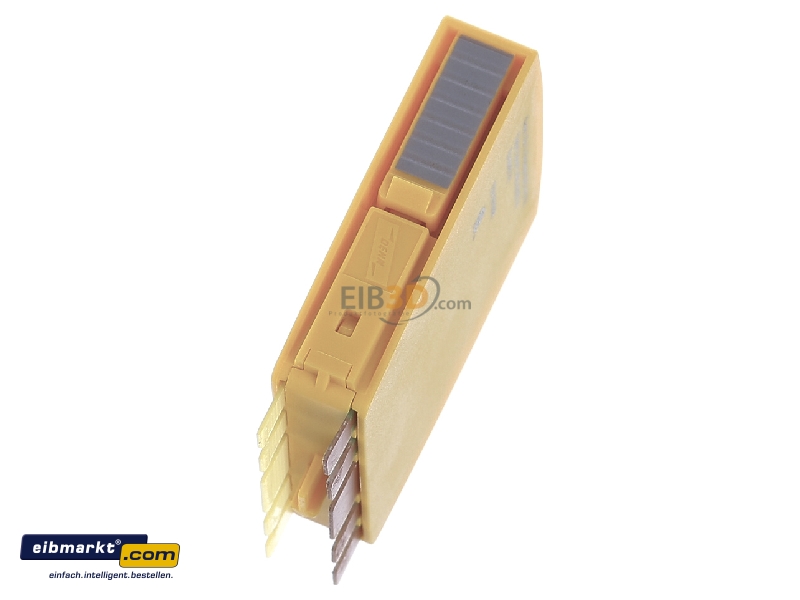

Top rear view Dehn+Söhne BXT ML2 BD 180 Combined arrester for signal systems
Top rear view

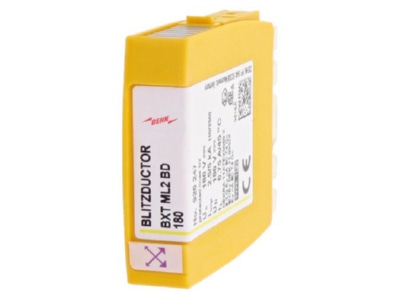

Product image Dehn BXT ML2 BD 180 Combined arrester for signal systems
Product image

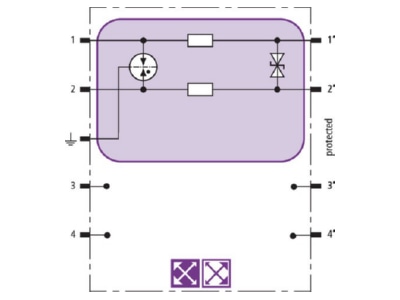

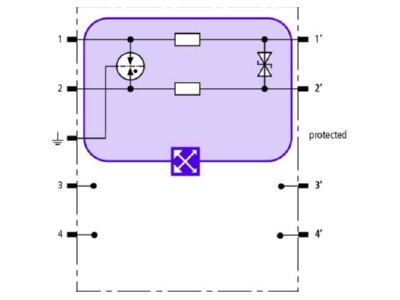

Circuit diagram 1 Dehn BXT ML2 BD 180 Combined arrester for signal systems
Circuit diagram 1
Circuit diagram 2 Dehn BXT ML2 BD 180 Combined arrester for signal systems
Circuit diagram 2

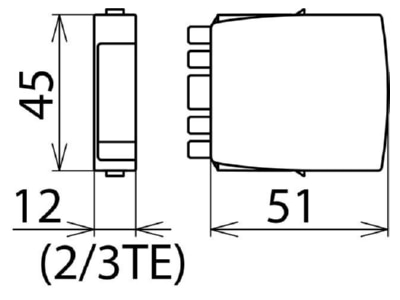

Dimensional drawing 1 Dehn BXT ML2 BD 180 Combined arrester for signal systems
Dimensional drawing 1
Dimensional drawing 2 Dehn BXT ML2 BD 180 Combined arrester for signal systems
Dimensional drawing 2
