Holder for lightning protection LH ZS 18EXW160 BPV2A
Source photo:
Dehn
(fig. might be different or similar)

Holder for lightning protection LH ZS 18EXW160 BPV2A

EAN/GTIN: 4013364485938
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: LH ZS 18EXW160 BPV2A
Manufact.-SKU: 275461
Customs tariff no.: 85389099
Similar top items: Show now & compare
34,32 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

HVI-L+ Ex W160 holder LH ZS 18EXW160 BPV2A Conductor fastening type with screw clamp, suitable for round conductor diameter 18 ... 18mm, holder material stainless steel (V2A), holder hole fastening type, carrier material stainless steel (V2A), overlay material stainless steel (V2A ), material of the lower part stainless steel (V2A), wall distance 55 ... 55mm, height of cable holder 16mm, suitable for Ex areas, cable holder for laying the HVI light plus cable in potentially explosive areas of Ex zone 1 (gases, vapors, mist ) and Ex zone 21 (dusts). The special installation conditions ensure that an electrical spark to neighboring metal parts is prevented when lightning current passes through the HVI light plus cable. Version with spacer sleeve, distance 160 mm, for attachment to metal construction parts (e.g. facades).

More product images:

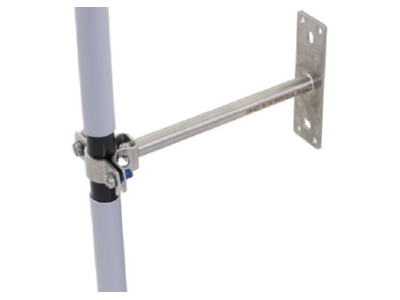

Product image 1 DEHN LH ZS 18EXW160 BPV2A Holder for lightning protection
Product image 1

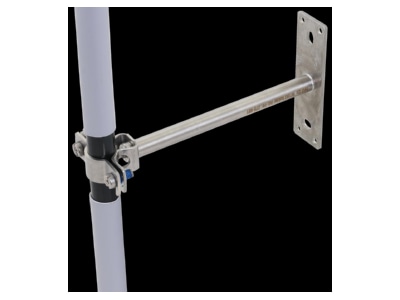

Product image 2 DEHN LH ZS 18EXW160 BPV2A Holder for lightning protection
Product image 2
Product image 3 DEHN LH ZS 18EXW160 BPV2A Holder for lightning protection
Product image 3

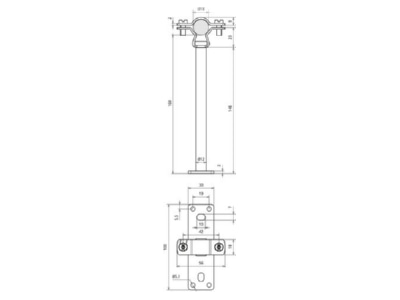

Dimensional drawing 1 DEHN LH ZS 18EXW160 BPV2A Holder for lightning protection
Dimensional drawing 1

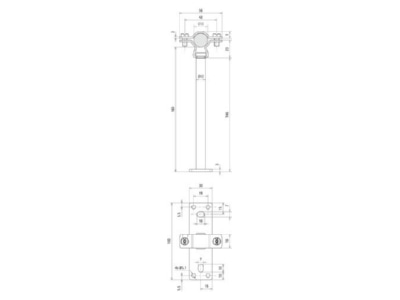

Dimensional drawing 2 DEHN LH ZS 18EXW160 BPV2A Holder for lightning protection
Dimensional drawing 2
