Combined arrester for signal systems BCO MOD ML2 BD 24
Source photo:
Dehn
(fig. might be different or similar)

Combined arrester for signal systems BCO MOD ML2 BD 24

EAN/GTIN: 4013364410169
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: BCO MOD ML2 BD 24
Manufact.-SKU: 927044
Customs tariff no.: 85363010
Similar top items: Show now & compare
67,85 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Nominal voltage DC 24 ... 24V, Max. continuous voltage AC 25,4V, Max. continuous voltage DC 36V, Lightning impulse current (10/350 µs) 3kA, Nominal discharge surge current (8/20) 10kA, Nominal load current 0,75A, Voltage protection level core/core 57V, Voltage protection level core/earth 600V, Limiting frequency 5,8MHz, Mounting method On basic element, Pro-active thermo-control

More product images:

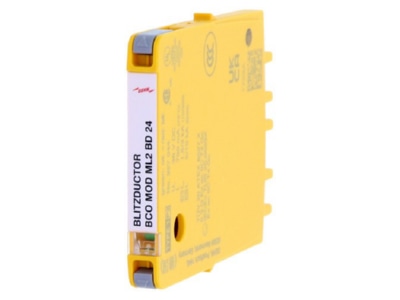

Product image 1 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Product image 1
Product image 2 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Product image 2

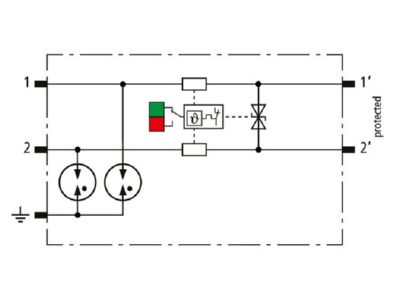

Circuit diagram 1 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Circuit diagram 1
Circuit diagram 2 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Circuit diagram 2

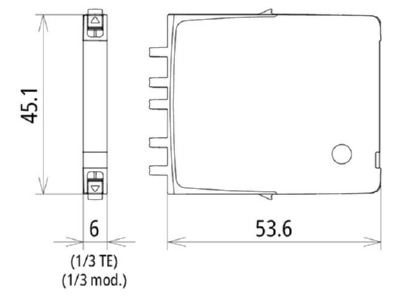

Dimensional drawing 1 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Dimensional drawing 1

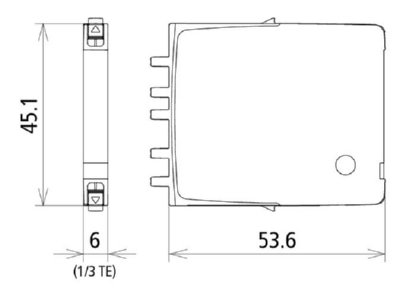

Dimensional drawing 2 DEHN BCO MOD ML2 BD 24 Combined arrester for signal systems
Dimensional drawing 2
