Combined arrester for signal systems BCO ML2 BD 12
Source photo:
Dehn
(fig. might be different or similar)

Combined arrester for signal systems BCO ML2 BD 12

EAN/GTIN: 4013364405622
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: BCO ML2 BD 12
Manufact.-SKU: 927242
Customs tariff no.: 85363010
Similar top items: Show now & compare
105,18 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Nominal voltage DC 12 ... 12V, Max. continuous voltage AC 10,6V, Max. continuous voltage DC 15V, Lightning impulse current (10/350 µs) 3kA, Nominal discharge surge current (8/20) 10kA, Nominal load current 0,75A, Voltage protection level core/core 32V, Voltage protection level core/earth 600V, Limiting frequency 2,6MHz, Mounting method DIN rail (top hat rail) 35 mm, Connection 1 Clamp, Pro-active thermo-control

More product images:

Product image 1 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Product image 1

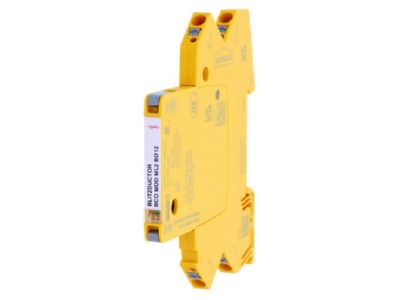

Product image 2 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Product image 2

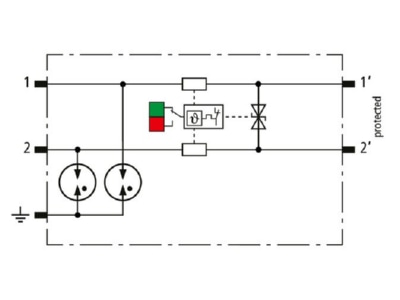

Circuit diagram 1 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Circuit diagram 1
Circuit diagram 2 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Circuit diagram 2

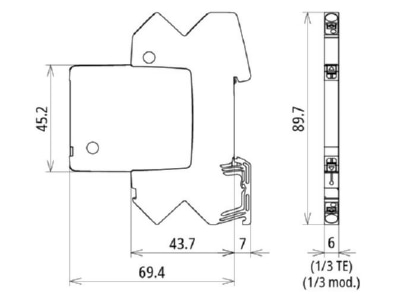

Dimensional drawing 1 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Dimensional drawing 1

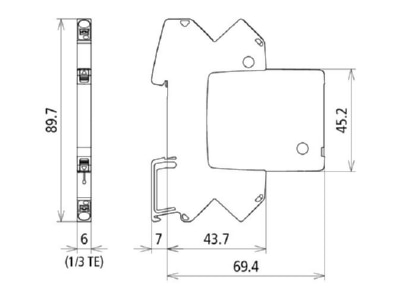

Dimensional drawing 2 DEHN BCO ML2 BD 12 Combined arrester for signal systems
Dimensional drawing 2
