Pressure switch MDR 7,5-25 G-1/2

EAN/GTIN: 4014502227045
WEEE: DE 33445930
Manufacturer: Condor
Manufacturer no.: MDR 7,5-25 G-1/2
Manufact.-SKU: 227045
Customs tariff no.: 85362010
Similar top items: Show now & compare
139,81 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pressure switch Suitable as guard, Max. operation pressure 25000hPa, Switch off pressure 7,5 ... 25bar, Bursting pressure 40bar, Medium temperature -5 ... 80°C, Rated voltage Ue at AC 50 Hz 0 ... 690V, Rated operation power at AC-3, 400 V 7,5kW, Rated operation current Ie at AC-1, 400 V 24A, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as change-over contact 0, Type of electric connection Screw connection, Number of normally closed contacts as main contact 3, Number of main contacts as normally open contact 0, Degree of protection (IP) IP54

More product images:

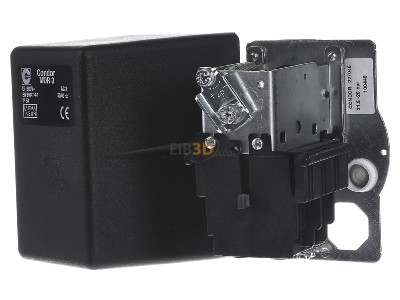

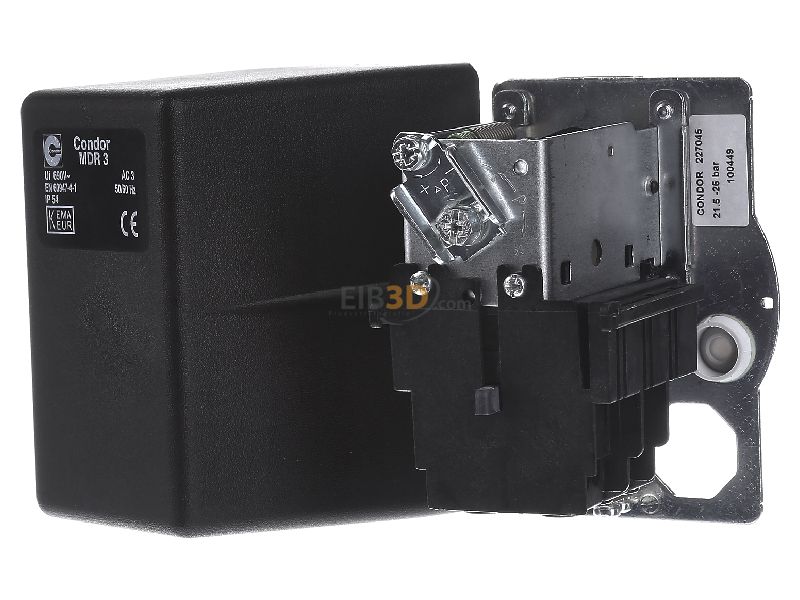

Front view Condor MDR 7,5-25 G-1/2 Pressure switch
Front view

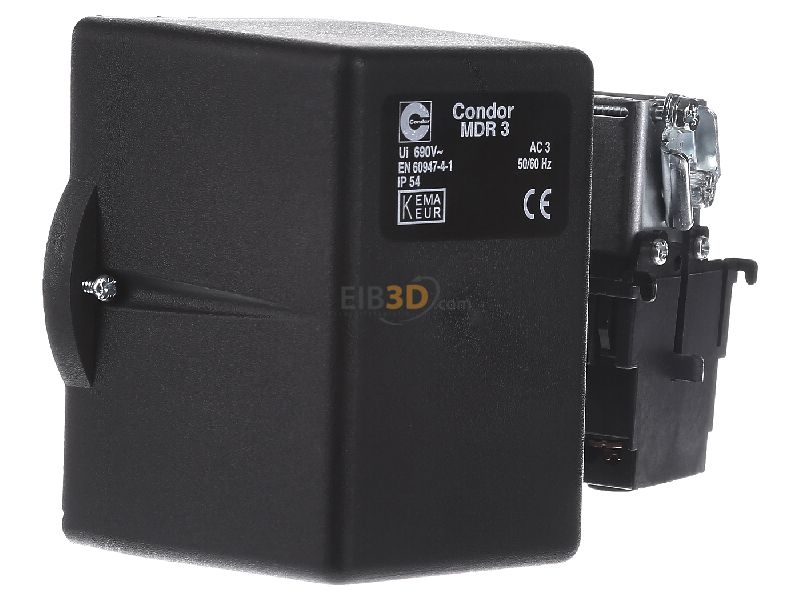

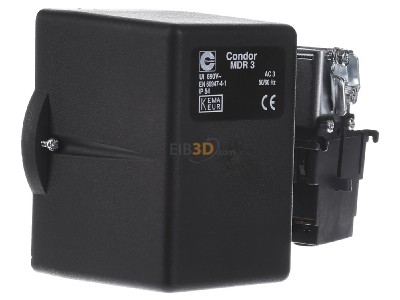

View on the left Condor MDR 7,5-25 G-1/2 Pressure switch
View on the left

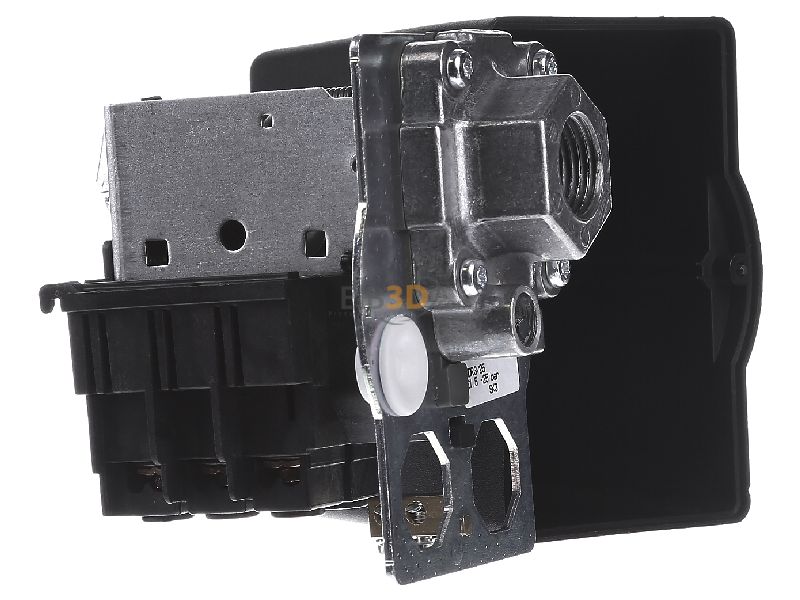

View on the right Condor MDR 7,5-25 G-1/2 Pressure switch
View on the right

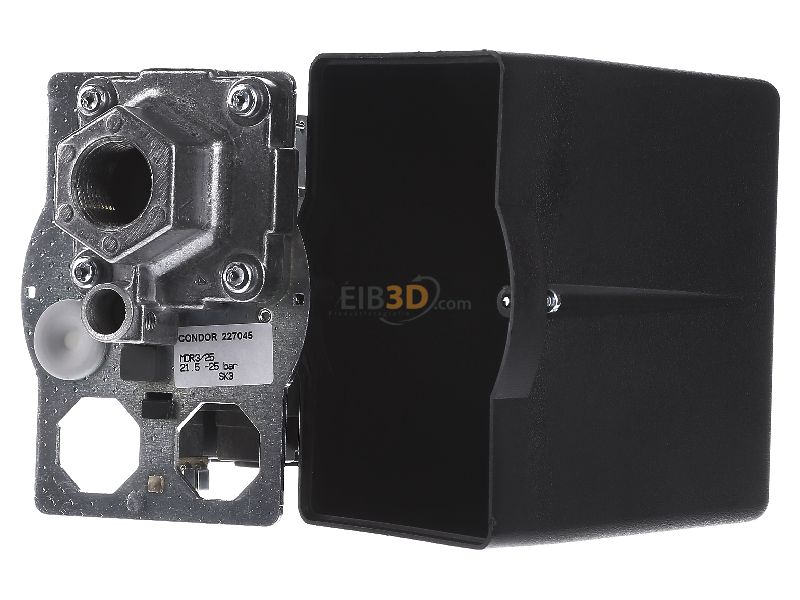

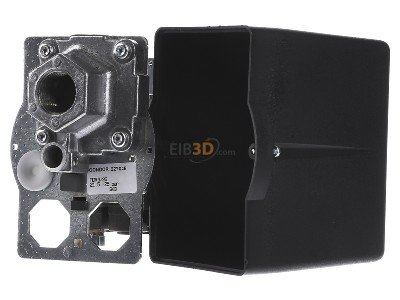

Back view Condor MDR 7,5-25 G-1/2 Pressure switch
Back view

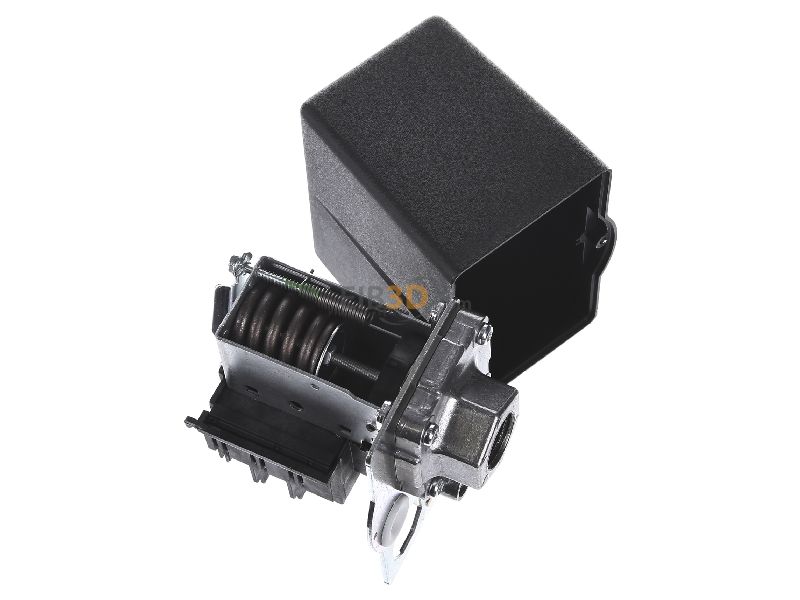

View up front Condor MDR 7,5-25 G-1/2 Pressure switch
View up front

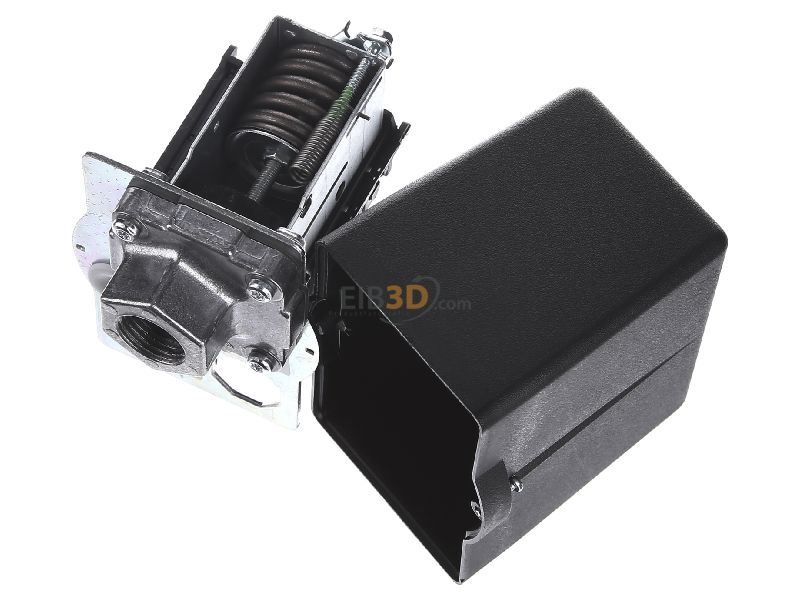

View top left Condor MDR 7,5-25 G-1/2 Pressure switch
View top left

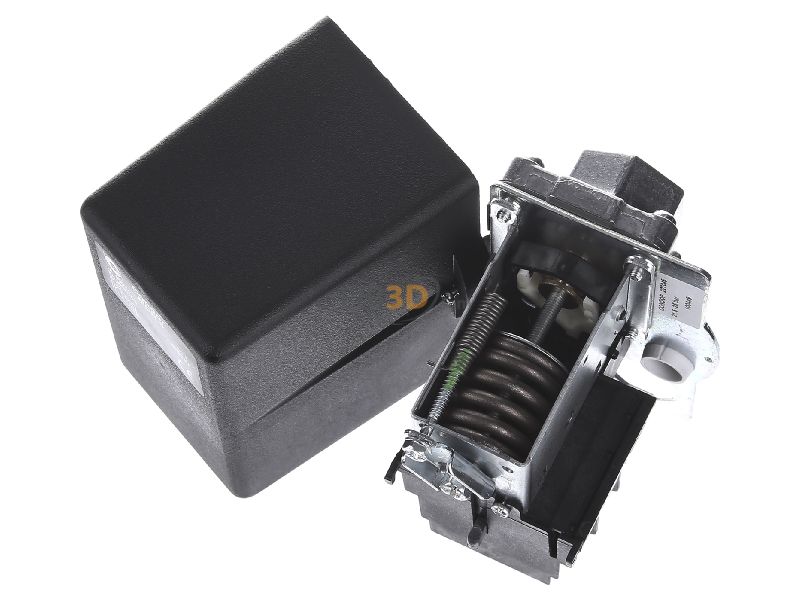

View top right Condor MDR 7,5-25 G-1/2 Pressure switch
View top right

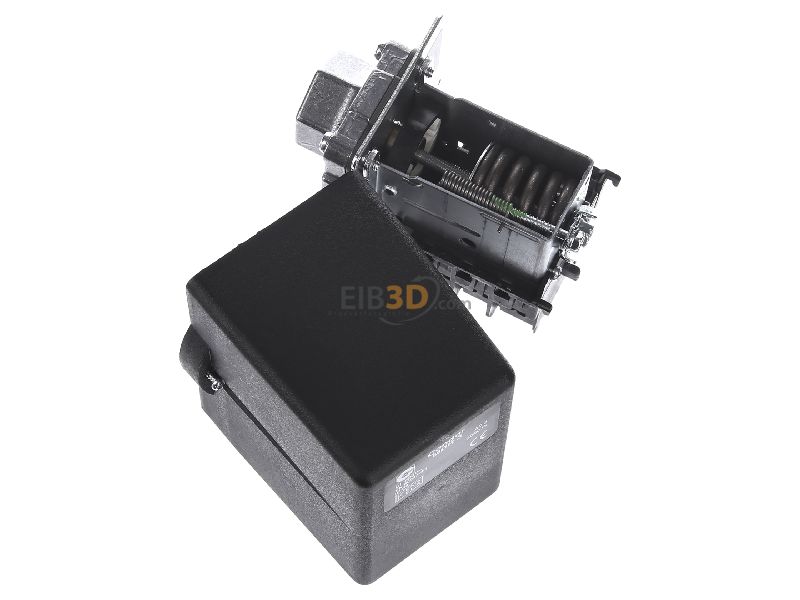

Top rear view Condor MDR 7,5-25 G-1/2 Pressure switch
Top rear view
