Duct hygrostat 30 - 100% HI-1
Source photo:
Alre-it
(fig. might be different or similar)

Duct hygrostat 30 - 100% HI-1

EAN/GTIN: 4050528046635
WEEE: DE 58457361
Manufacturer: Alre-it
Manufacturer no.: HI-1
Manufact.-SKU: JA010100
Customs tariff no.: 90321080
Similar top items: Show now & compare
210,64 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Measuring range lower value (RH)=30 %, Measuring range upper value (RH)=100 %, Adjustable differential gap=no, Differential range/switch hysteresis=5 %, Number of switch steps=1, Type of measuring element=Plastic element, Max. medium temperature (continuous)=60 °C, Max. contact voltage=230 V, Max. contact load=15 A, Contact lock=no, Degree of protection (IP)=IP65, Explosion-proof=no, Insert length=225 mm, Colour=Grey, RAL-number=7016, Height=67,5 mm, Width=130 mm, Depth=71 mm

More product images:

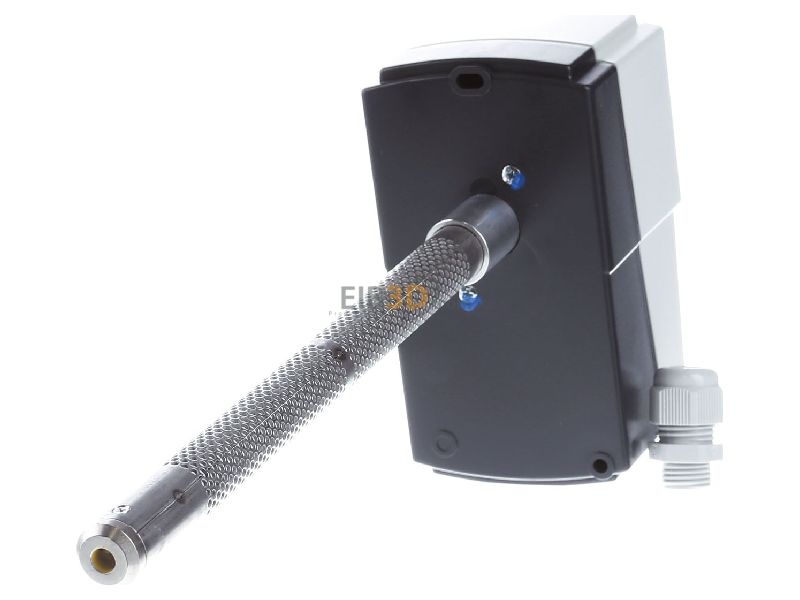

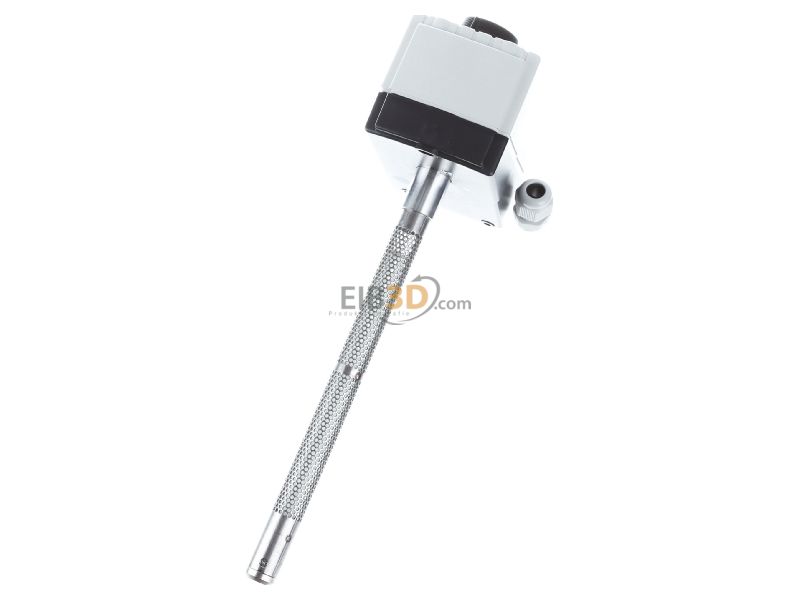

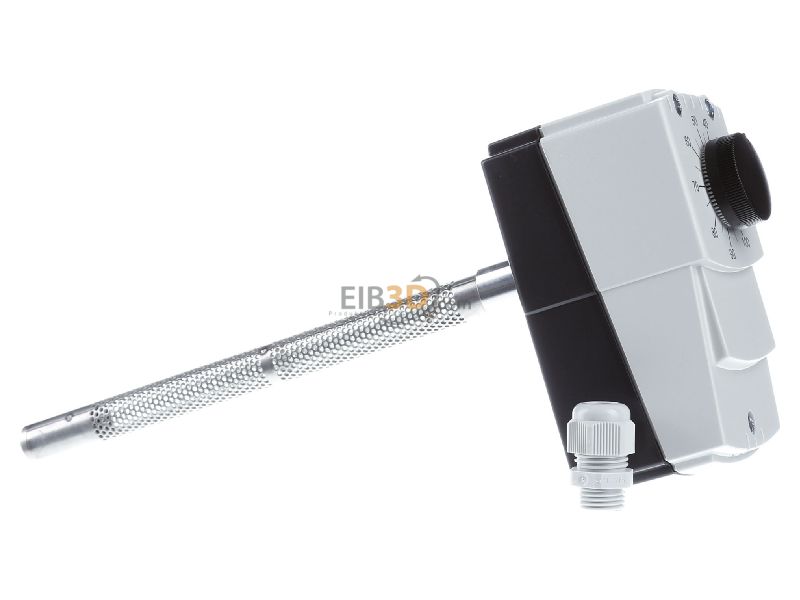

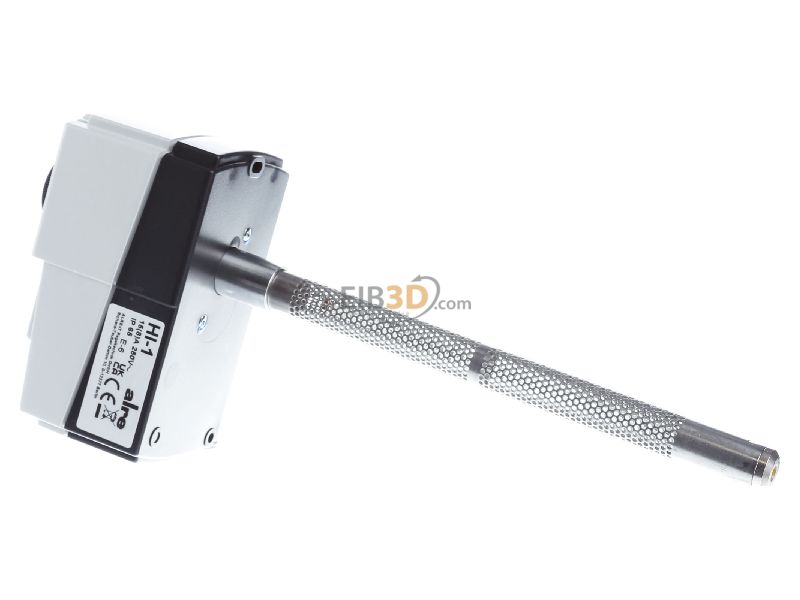

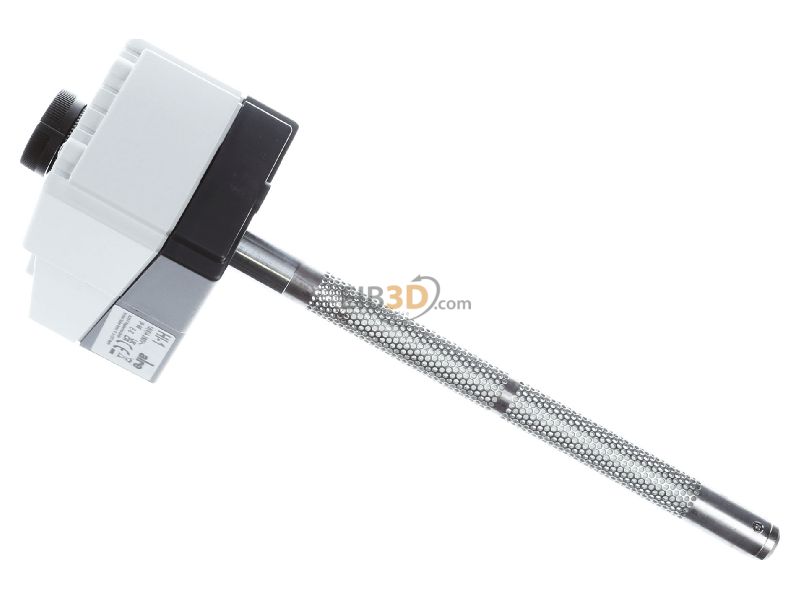

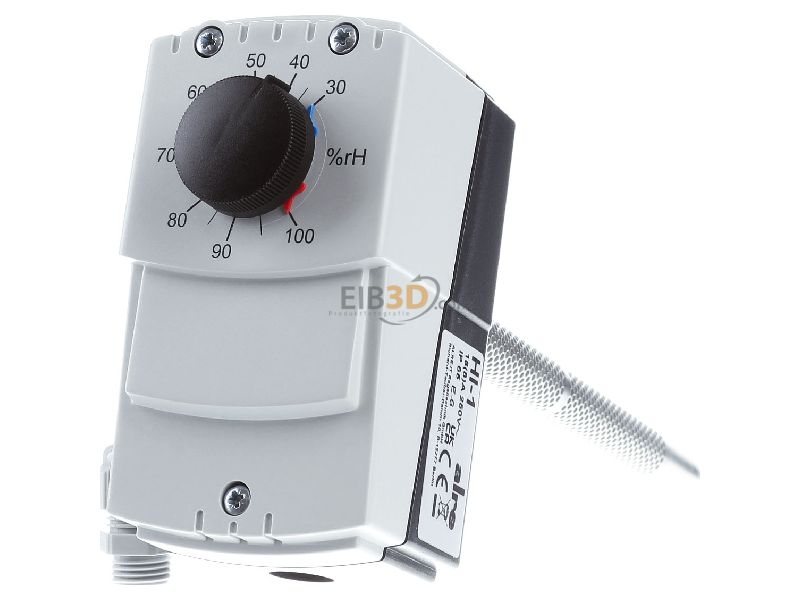

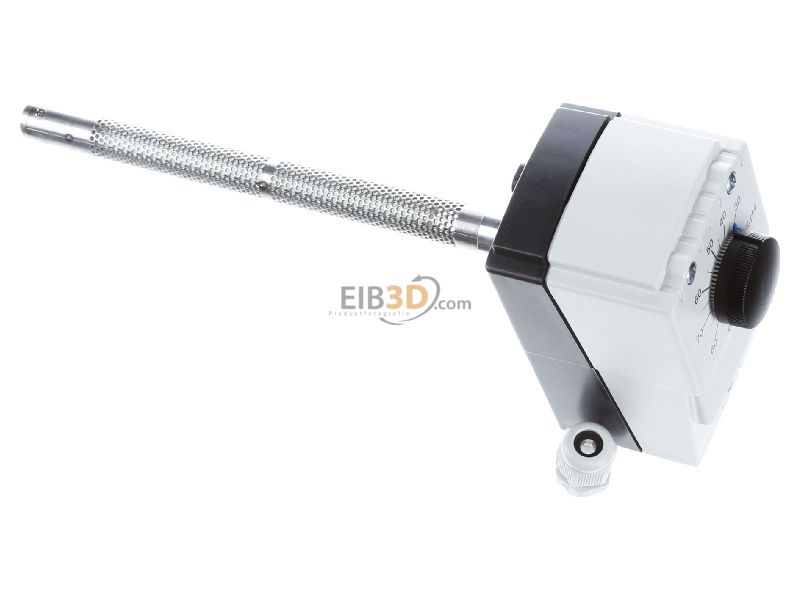

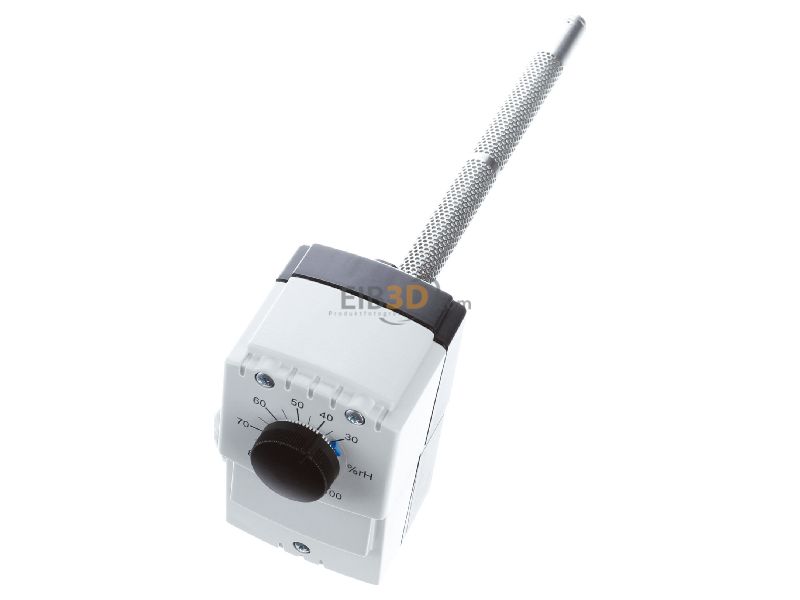

Product image 1 Alre it HI 1 Duct hygrostat 30   100
Product image 1
Product image 2 Alre it HI 1 Duct hygrostat 30   100
Product image 2
Product image 3 Alre it HI 1 Duct hygrostat 30   100
Product image 3
Product image 4 Alre it HI 1 Duct hygrostat 30   100
Product image 4
Wiring plan Alre it HI 1 Duct hygrostat 30   100
Wiring plan
Dimensional drawing Alre it HI 1 Duct hygrostat 30   100
Dimensional drawing
