Phase busbar 3-p 10mm˛ PS 3/12 FI

EAN/GTIN: 4016779571074
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: PS 3/12 FI
Manufact.-SKU: 2CDL230002R1012
Customs tariff no.: 85369010
Similar top items: Show now & compare
12,91 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Phase busbar 3-p 10mm˛ Number of phases 3, Number of poles 12, Suitable for number of devices 4, Pitch dimensions 17,5mm, Cross section 10mm˛, Length 214mm, Rated permanent current Iu 63A, Type of electric connection Pin, Insulated, Rated surge voltage 4,5kV, Conditioned rated short-circuit current Iq 25kA, Max. rated operation voltage Ue 690V, Rated short-time withstand current lcw 25kA, Suitable for devices with N-busbar

More product images:

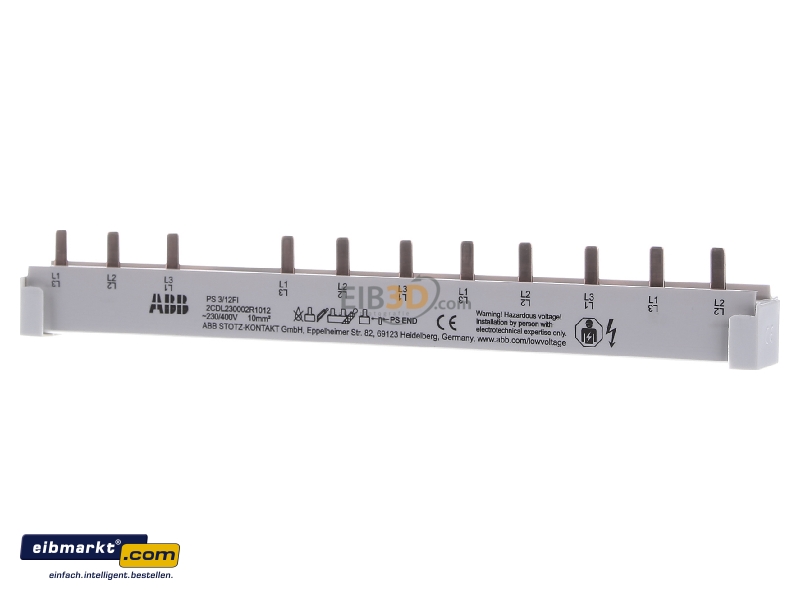

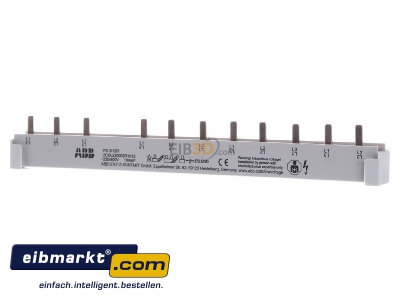

Front view ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
Front view

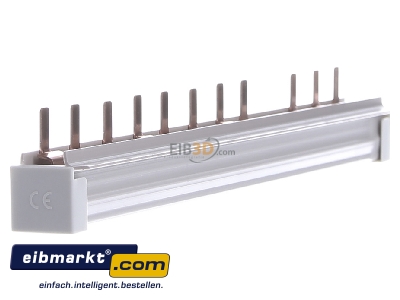

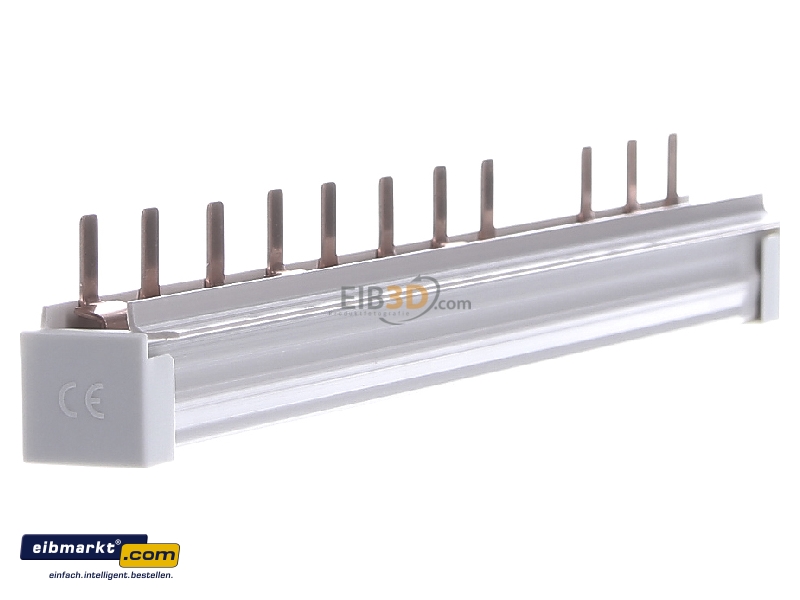

View on the left ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
View on the left

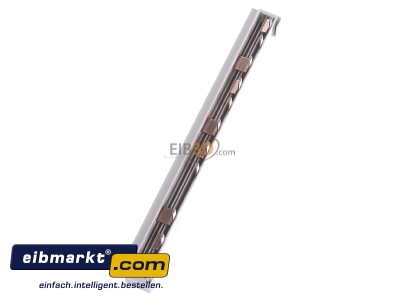

View on the right ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
View on the right

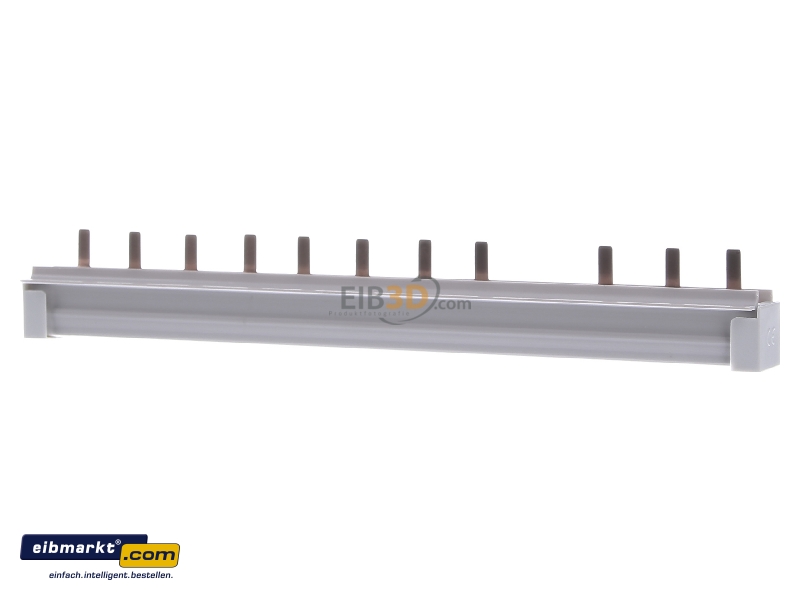

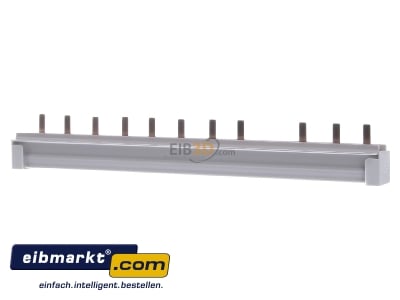

Back view ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
Back view

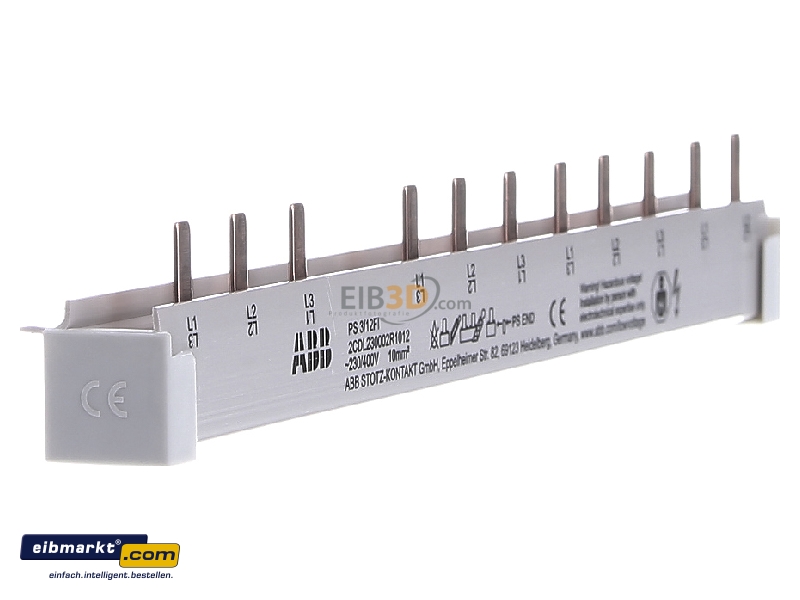

View up front ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
View up front

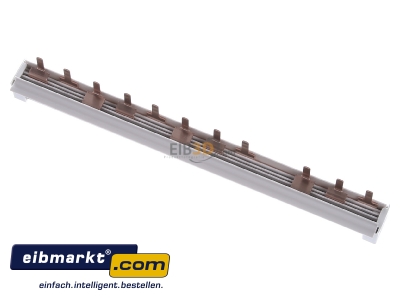

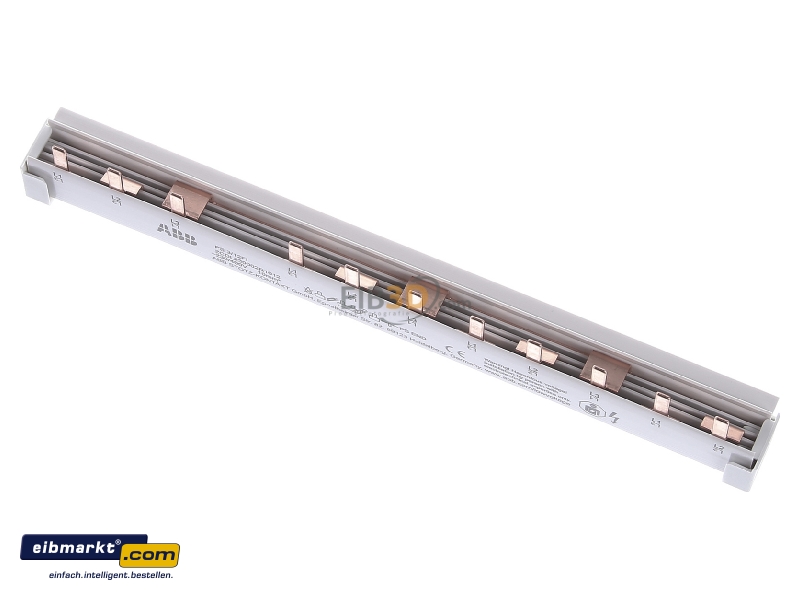

View top left ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
View top left

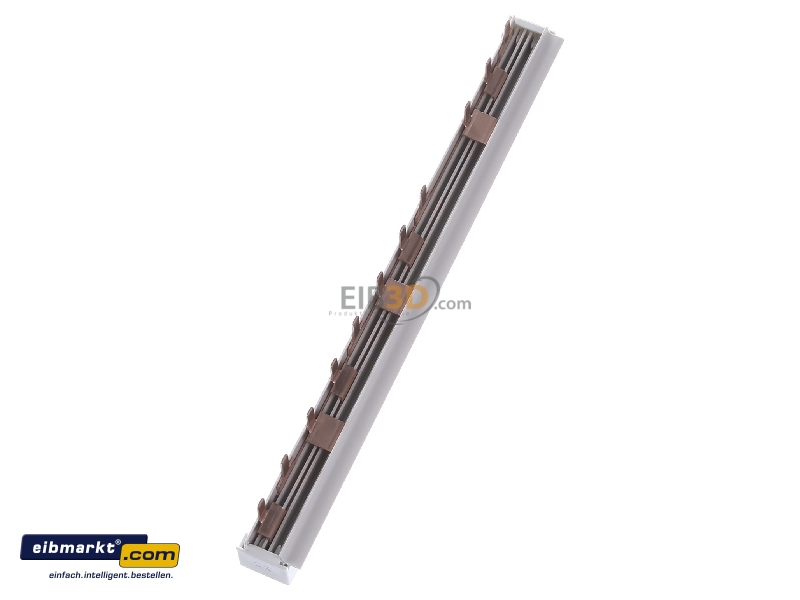

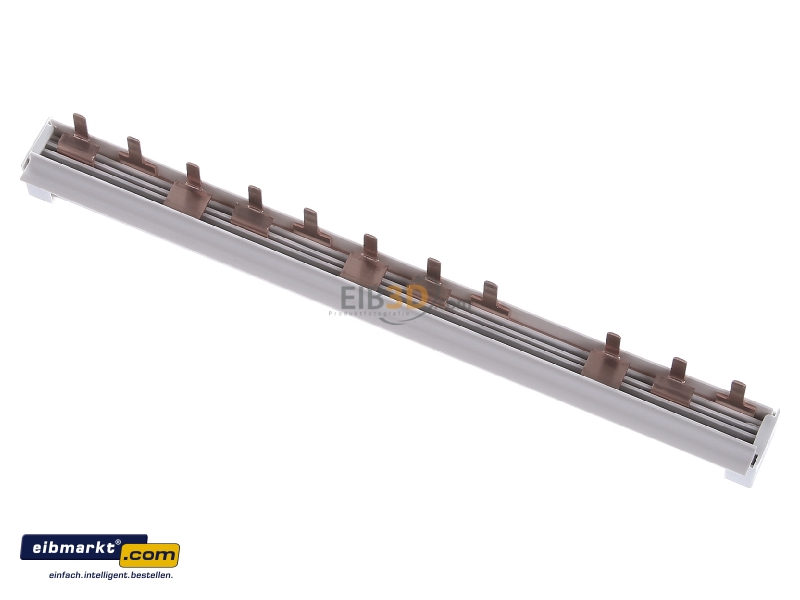

View top right ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
View top right

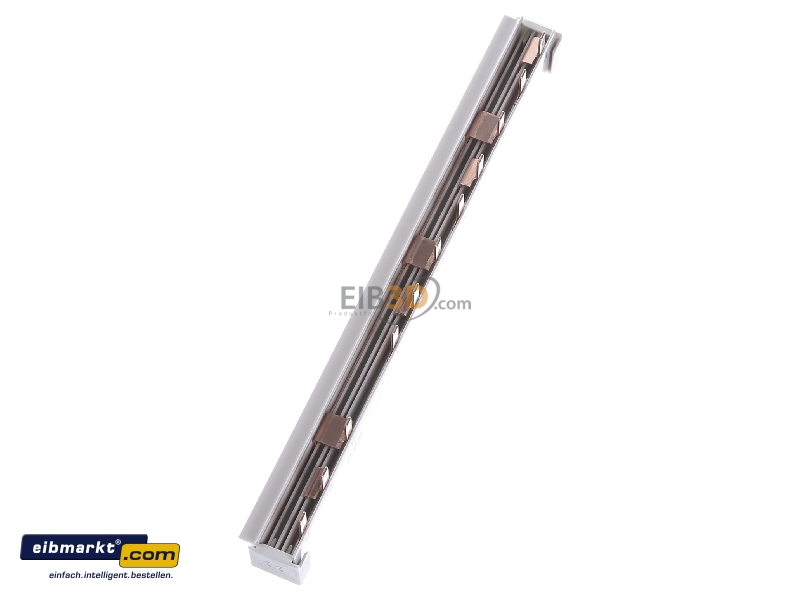

Top rear view ABB Stotz S&J PS 3/12 FI Phase busbar 3-p 10mm²
Top rear view

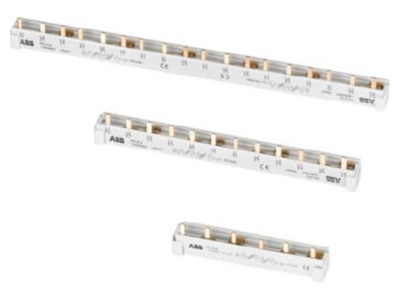

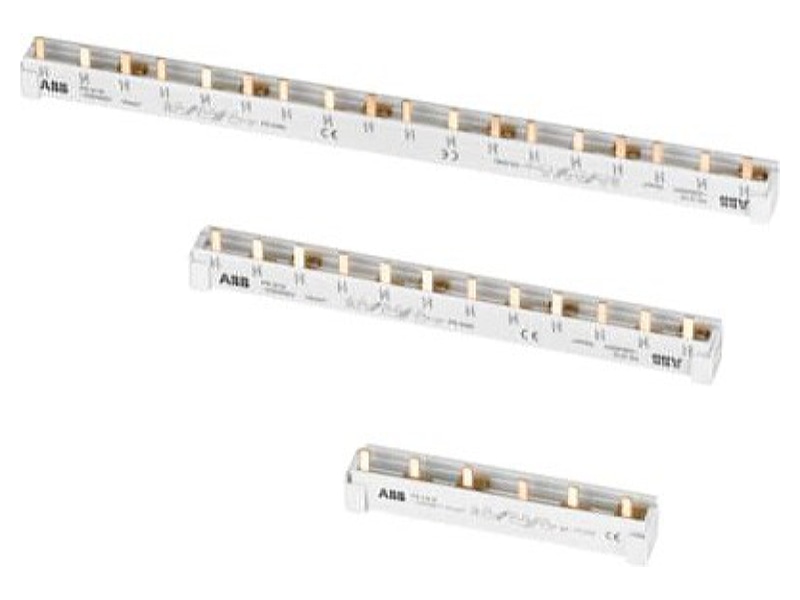

Product image ABB PS 3 12 FI Phase busbar 3 p 10mm
Product image

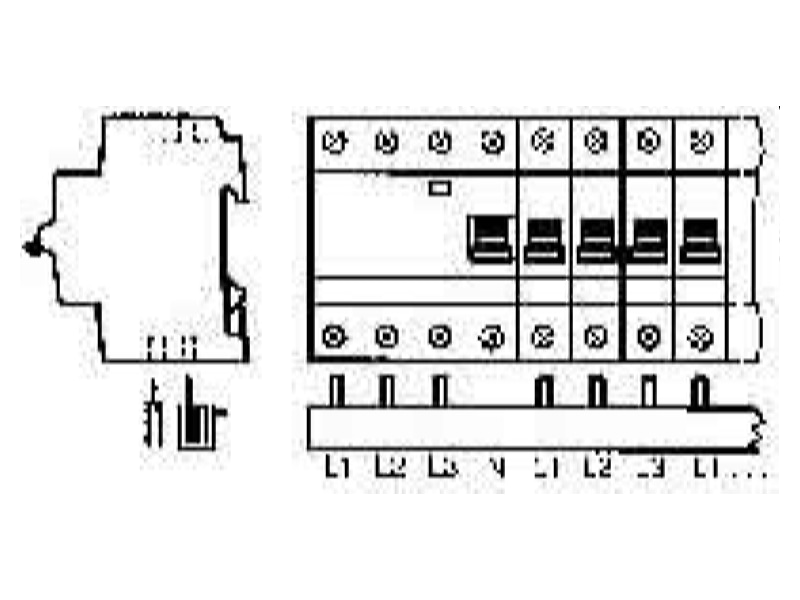

Dimensional drawing ABB PS 3 12 FI Phase busbar 3 p 10mm
Dimensional drawing
